Flywheel: Service and Repair

Dual Mass Flywheel, Manual Transmission

Special tools, testers and auxiliary items required

• Counter Hold Tool (10-201)

Removing

• Engine or transmission removed.

- Remove clutch pressure plate.

- Mark dual mass flywheel to crankcase.

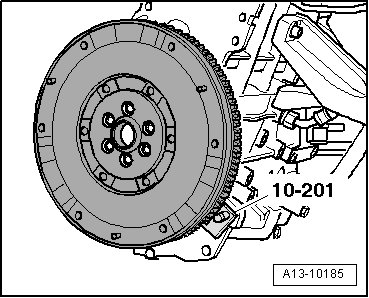

- Insert Counter Hold Tool (10-201) to loosen bolts.





• To prevent damage to dual-mass flywheel when removing, bolts - B - must not be removed using an air-powered or impact wrench. Only removing bolts by hand is permitted.





- Rotate dual-mass flywheel - A - so that bolts stand centered to holes - arrows -.

- When removing bolts, make sure that no bolt head makes contact on dual-mass flywheel because it will otherwise be damaged when further screwing the bolt.

Installing

Installation is in reverse order of removal, note the following:

- Use new bolts when securing.

- Turn over Counter Hold Tool (10-201) to tighten bolts.

- Install clutch pressure plate.

Tightening specification





* Replace bolts.

* 90° corresponds to one quarter rotation.

* 180° corresponds to a half turn.
