Cooling System Components

Cooling system components

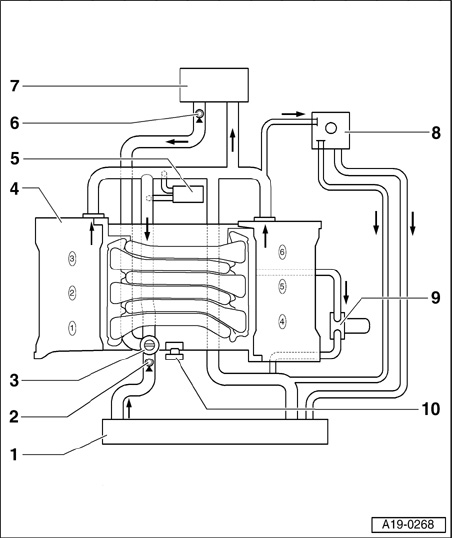

Coolant hose connection diagram





1 - Radiator
^ After replacing, replace coolant

2 - Bleeder screw, 15 Nm

3 - Coolant thermostat

4 - Cylinder head/Cylinder block
^ After replacing, replace coolant

5 - Throttle valve control module -J338-

6 - Bleeder hole
^ At coolant hose to heater core

7 - Heater core
^ After replacing, replace coolant

8 - Expansion tank
^ With cap

9 - Oil cooler

10 - Coolant pump
^ Check for ease of movement
