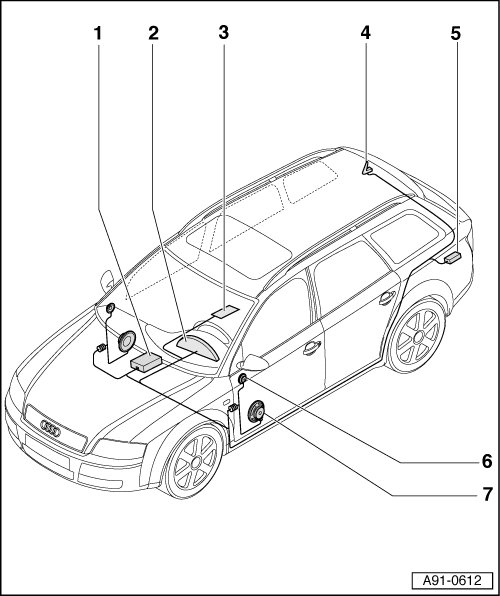

Navigation System IV Component Locations, Avant

Navigation System IV Component Locations, Avant





1 Radio (R)

• In center console, at top

2 Instrument cluster display

• Instrument cluster, removing and installing. => Instrument Panel, Gauges and Warning Indicators Instrument Panel, Gauges and Warning Indicators

3 Function Selector Switch II (E272)

• In center console, bottom

• Removing and installing => [ Navigation System IV Function Selector Switch II ] Service and Repair

4 Navigation System Antenna (R50) roof antenna

• Removing and installing => [ Navigation System Antenna, Avant ] Navigation System Antenna, Avant

5 Navigation System with CD Drive Control Module ( J401)

• Behind luggage compartment left side trim

• Connections => [ Navigation System with CD Drive Control Module, Harness Connectors ] Navigation System With CD Drive Control Module, Harness Connectors

• Removing and installing => [ Navigation System with CD Drive Control Module ] Navigation System With CD Drive Control Module

6 Left Front Midrange Speaker (R26)/Right Front Midrange Speaker (R27)

• In top of front doors

7 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23)

• In bottom of front doors
