Procedures

Engine, Securing on Assembly Stand

Special tools, testers and auxiliary items required

• Shackle (10-222 A/12)

• Lifting Tackle (3033)

• Engine and Transmission Holder (VAS 6095) with Bracket for V8 Engine (VAS 6095/1-6) or Bracket for V8 Engine (VAS 6095/1-6A)

• Shop Crane (VAS 6100)

• Lift Arm Extension for Workshop Crane (VAS 6101)

• Scissor Type Assembly Platform (VAS 6131)

• Additional Hooks (10-222 A/2)

Procedure

- Disconnect vacuum hose - 1 -.






- Disconnect the air guide hose - 2 - from the throttle valve control module.

- Secure (10-222 A/12) to the right rear engine lifting eyelet.






- Hook (10-222 A/2) on (10-222 A/12).

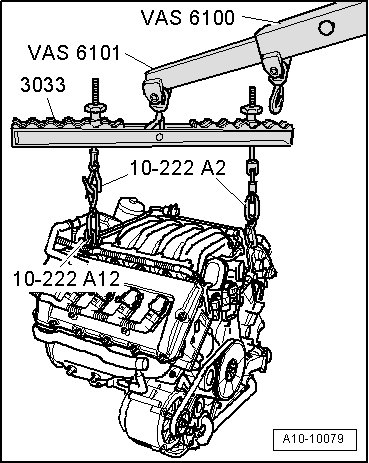

- Engage (3033) on (10-222 A/2) and on (VAS 6100) with (VAS 6101) as shown in the illustration.






- Lift engine from support elements of (VAS 6131).

- Remove engine mount with left engine support.

- Secure engine with (VAS 6095/1-6) or (VAS 6095/1-6A) on (VAS 6095) as shown in the illustration.
