Cylinder Head, Valvetrain - Fastener Tightening Specifications

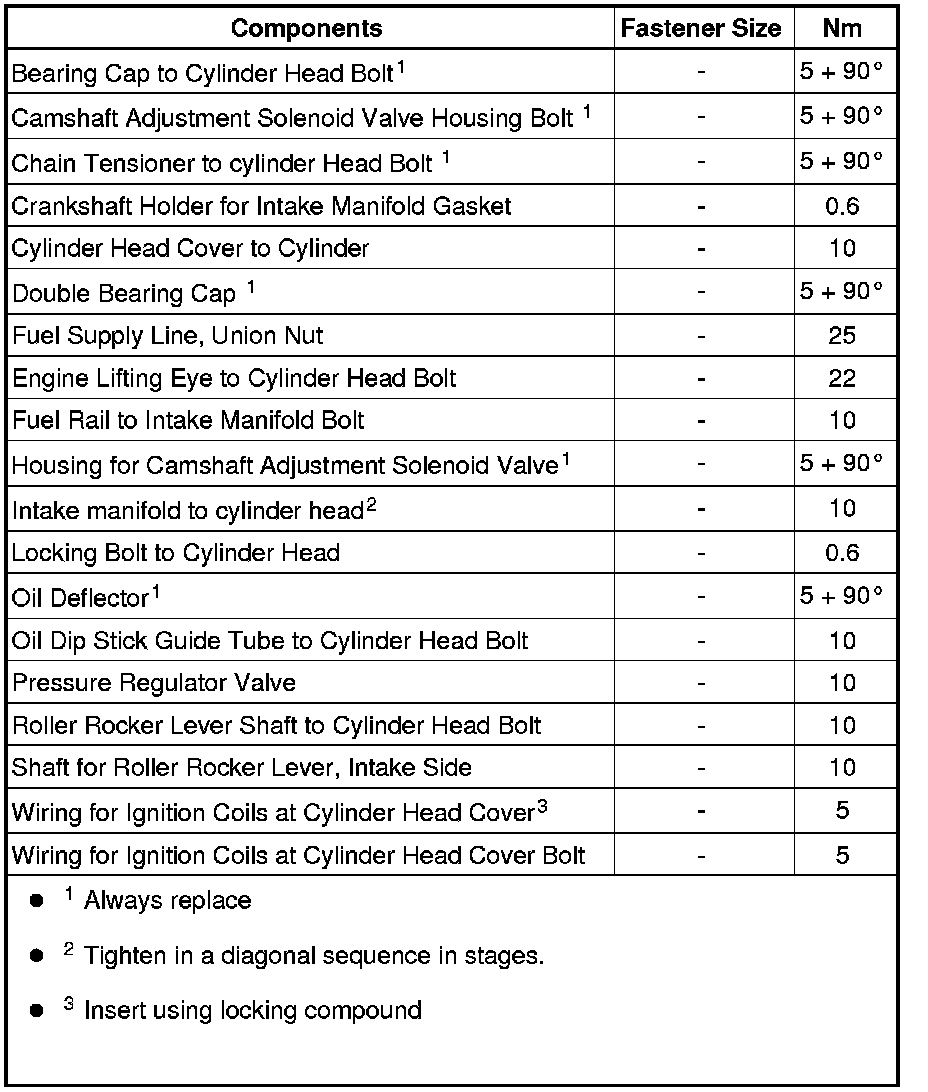

Fastener Tightening Specifications

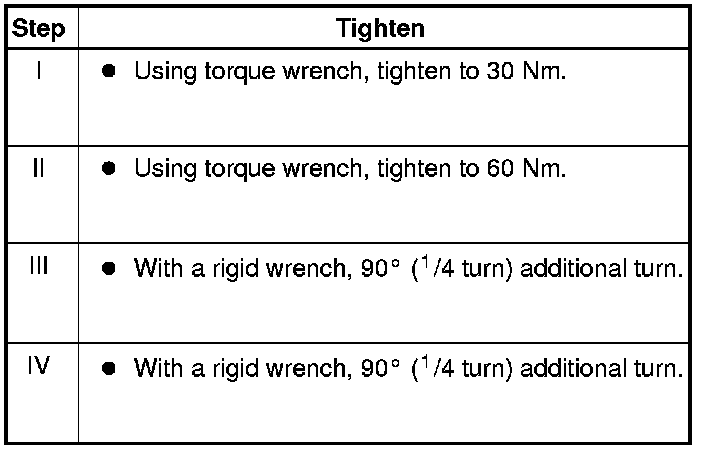

Tighten Cylinder Head in Sequence Indicated, in Four Stages as Follows:
