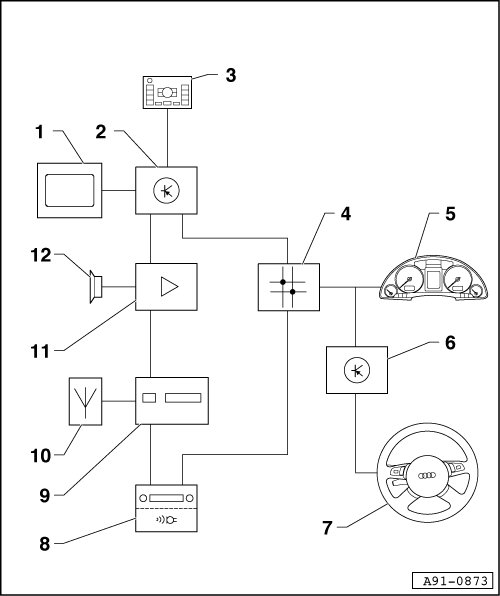

Navigation System, through August 2008, Overview
Navigation System, through August 2008, Overview
1 Front Information Display Control Head (J685) in Center Instrument Panel
2 Front Information Display Control Head Control Module (J523) behind Glove Compartment
3 Multimedia Control Head (E380) in Lower Center Console
4 Data Bus On Board Diagnostic Interface (J533) behind Glove Compartment
5 Instrument Cluster Control Module (J285) (instrument Cluster) in Instrument Panel
6 Steering Column Electronic Systems Control Module (J527) on Steering Column at Steering Column Switches
7 Multifunction Steering Wheel
8 Radio (R) with Speech Input Control Module (J507) behind Left Luggage Compartment Side Trim
9 Navigation System with CD Drive Control Module (J401) behind Luggage Compartment Left Side Trim
10 Navigation System Antenna (R50) behind Trim Roof End Panel/Vehicles With Telephone/Avant/USA roof antenna (R216)
11 Digital Sound System Control Module (J525) behind Left Luggage Compartment Side Trim
12 Sound Systems
