Rear Seat Ventilation Control Modules, Separating From Carrier Plate

Individual Power Rear Seats

Rear Seat Ventilation Control Modules, Separating from Carrier Plate





Removing

- On vehicles with center console extension: Remove center console extension => [ Center Console Extension ] Center Console with Extension.

- On vehicles without center console extension: Remove center section => [ Center Seat Section ]. Center Seat Section

- Remove carrier plate for control modules => [ Control Module Carrier Plate ]. Control Module Carrier Plate

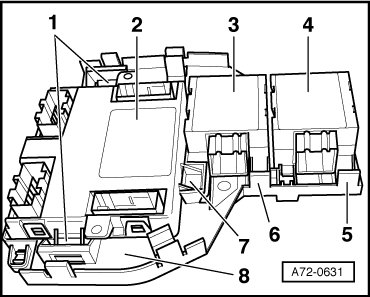

To remove control module of the left seat ventilation - 4 -:

- Pry out the clip - 5 -.

- Remove control module - 4 -.

To remove control module of the right seat ventilation - 3 -:

- Pry out the clip - 6 -.

- Remove control module - 3 -.

Installing

- Press control module - 3 - or - 4 - into carrier plate - 8 -.
