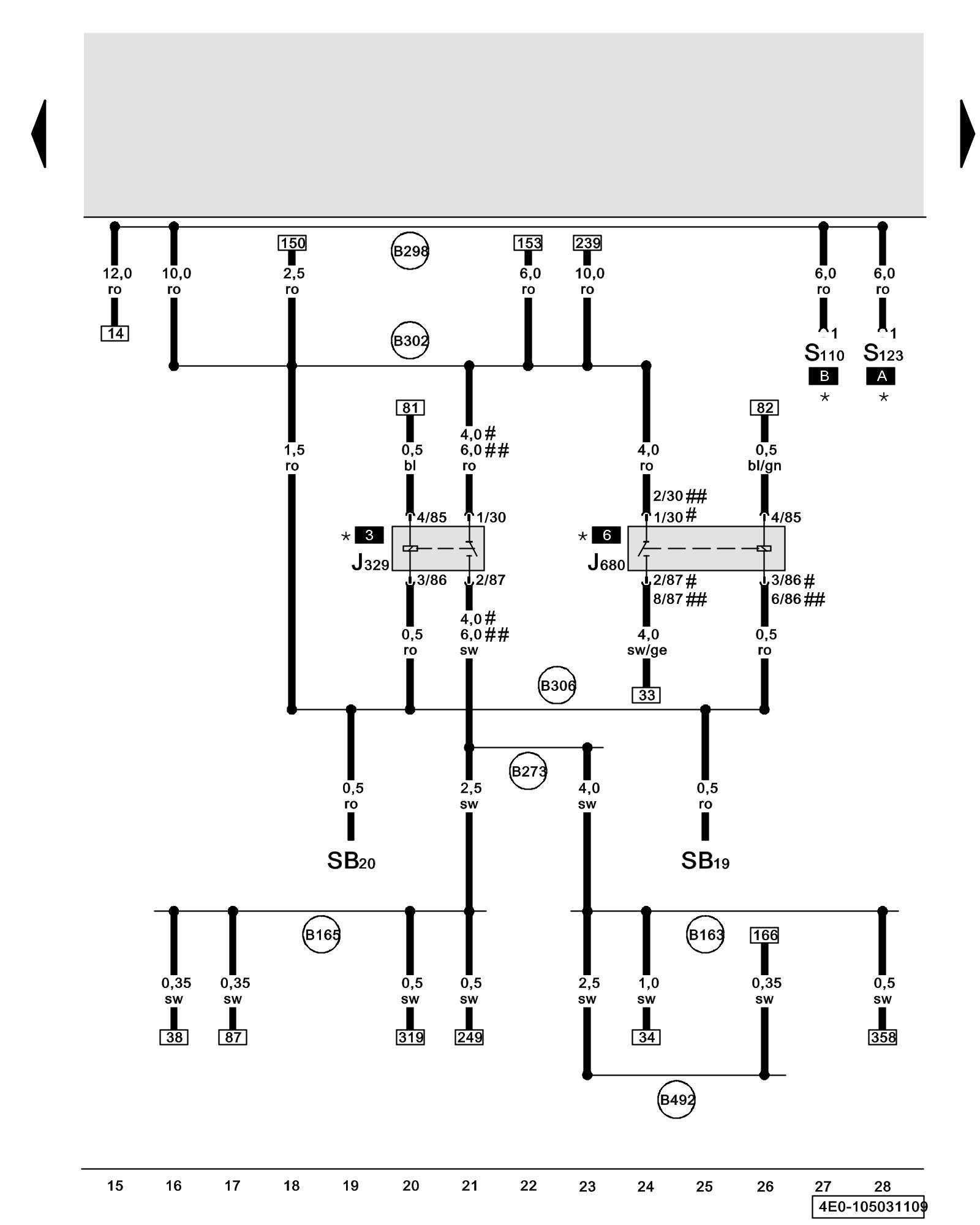

Diagram 105/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power Supply Relay (terminal 15), Power Supply Relay 1 (terminal 75)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J329 - Power Supply Relay (terminal 15) Overview of Relay Carrier

J680 - Power Supply Relay 1 (terminal 75) Overview of Relay Carrier

S110 - Self-Levelling System Fuse Fuse Overview

S123 - ABS Control Module Fuse 1 Fuse Overview

SB19 - Fuse 19 (on fuse panel B) Fuse Overview

SB20 - Fuse 20 (on fuse panel B) Fuse Overview

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B165) - Plus Connection 2 (15) (in interior wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

(B298) - Plus Connection 2 (30) (in main wiring harness)

(B302) - Plus Connection 6 (30) (in main wiring harness)

(B306) - Plus Connection 10 (30) (in main wiring harness)

(B492) - Plus Connection 3 (15) (in interior wiring harness)

* - Relay and Fuse Panel behind Instrument Panel, left

# - through 10.06

## - from 11.06
