Seat Pan Ventilation

Power Memory Front Seats

Seat Pan Ventilation





Removing

- Remove seat. Side Trim, Sill Side

- Mount the fixture for seat repair (VAS 6136) on the engine and transmission holder (VAS 6095).

- Attach the front seat to the fixture for seat repair (VAS 6136).

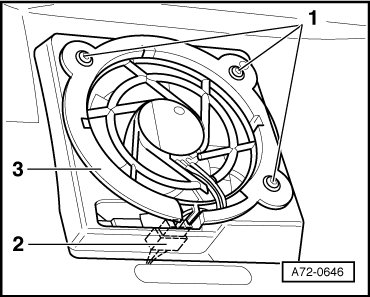

- Remove connector - 2 -.

- Remove bolts - 1 - (Qty. 3). 0.5 Nm.

- Remove seat ventilation - 3 -.

Installing

- Install seat ventilation - 3 - in reverse order of removal.
