Radiator Support: Locations

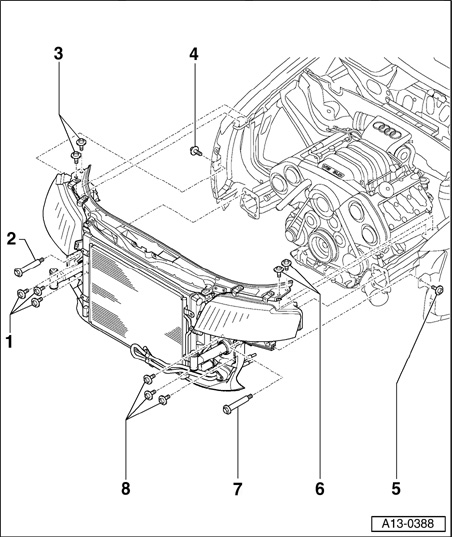

Lock Carrier In Service Position, Overview







Move lock carriers to service position,

1 - 50 Nm
2 - Support tool 3369
- Tighten to 10 Nm
3 - 10 Nm
4 - 10 Nm
5 - 10 Nm
6 - 10 Nm
7 - Support tool 3369
- Tighten to 10 Nm
8 - 50 Nm
