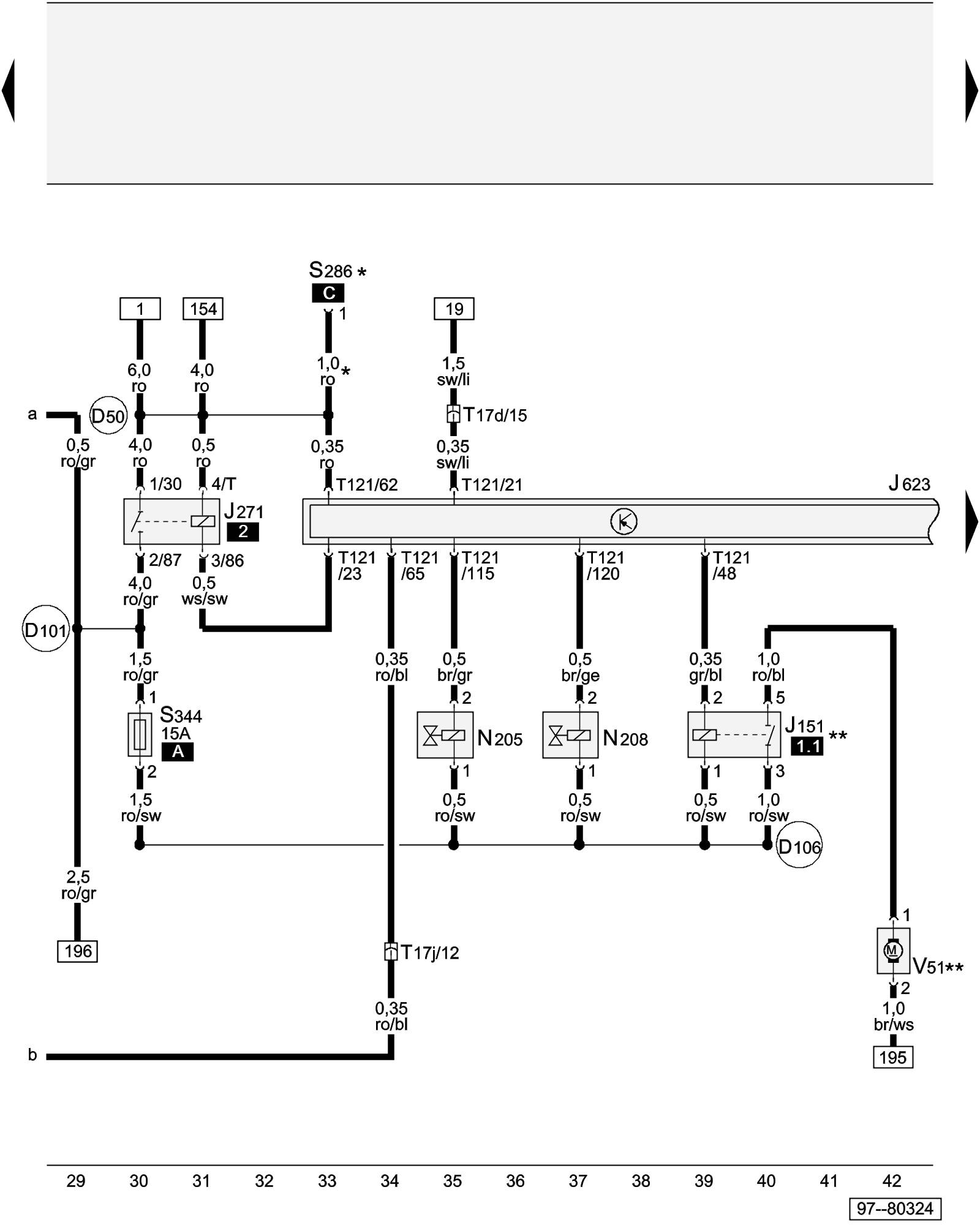

Diagram 94/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Motronic Engine Control Module (ECM) Power Supply Relay, Fuses, Camshaft Adjustment Valves, After-Run Coolant Pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J151 - Coolant Circulation Pump Relay

J271 - Motronic Engine Control Module (ECM) Power Supply Relay

J623 - Engine Control Module (ECM)

N205 - Camshaft Adjustment Valve 1

N208 - Camshaft Adjustment Valve 2

S286 - Automatic Transmission After-Run Fuse

S344 - Engine Electronics Fuse 2

T17d - 17-Pin Connector, red, connector station E-box, plenum chamber

T17j - 17-Pin Connector, brown, connector station E-box, plenum chamber

T121 - 121-Pin Connector, black

V51 - After-Run Coolant Pump

(D50) - Plus connection (30), in engine compartment wiring harness

(D101) - Connection 1 (in engine compartment wiring harness)

(D106) - Connection 4 (in engine compartment wiring harness)

* - Automatic transmission (AG6) only
