Clock: Service and Repair

Radio Frequency Controlled Clock Receiver

Removing





- Remove rear bumper cover.

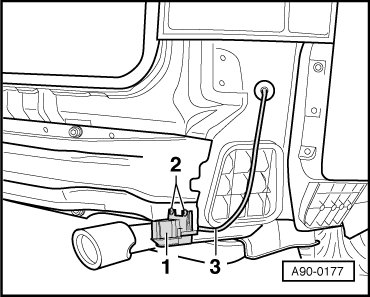

- Disconnect positive wire electrical connector - 3 - at Radio Frequency Controlled Clock Receiver (J489) - item 1 -.

- Remove screws - 2 - and remove Radio Frequency Controlled Clock Receiver (J489).

Installing

Install in reverse order of removal, observing the following:

- Install rear bumper cover.

Tightening Specifications
