A/C - Does Not Cool At All

87 08 10

2016216/2

December 5, 2008.

Supersedes Technical Service Bulletin Group 87 number 07-10 dated October 2, 2007 for reasons listed below.

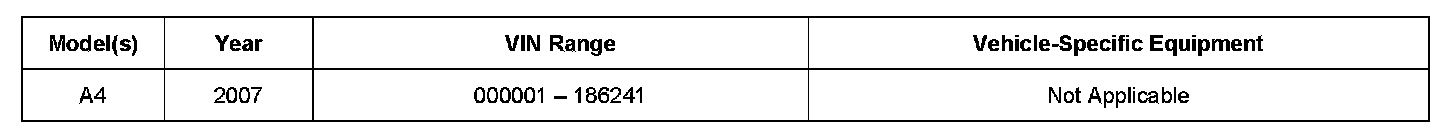

Affected Vehicles

87 Air conditioning does not cool at all

Condition





The air conditioning does not cool at all. Compressor generates no pressure.

Technical Background

Unknown.

Production Solution

None.

Service

If the customer's concern is that the air conditioning system does not cool at all or that the air conditioning cooling was previously not operational at all but now functions normally, do not make any repairs to the vehicle until the following diagnostic procedures are performed:

1. Test drive vehicle to check air conditioning system operation. It is possible that the air conditioning cooling functions properly at the time of customer visit.

2. Run a complete diagnostic memory check of all modules: Vehicle Self Diagnosis >> On Board Diagnostic >> Compiling Services >> Check DTC Memory-Complete System. Do not clear any faults and save the test plan to a removable carrier.

3. Check air conditioning system refrigerant pressures and refrigerant volume.

4. Open a TACS ticket, attach the diagnostic protocol and report the current condition of the system after the test drive and system test.
5. Do not perform any other inspections or tests until instructed to do so.

Warranty

This TSB is informational only and not applicable to any Audi warranty.

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
