Center Arm Rest Wiring Set, Front Center Armrest

Telephone System

Center Arm Rest Wiring Set, Front Center Armrest

- Switch off all electrical consumers.

- Remove the key.

Removing

First, front center armrest in center console must be disassembled.

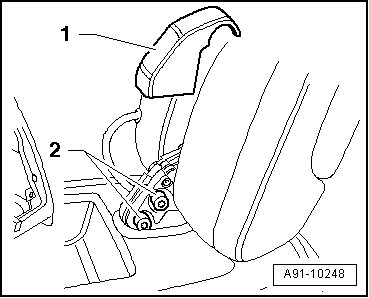

- Pull off top trim support base - 1 - upward.





- Remove bolts - 2 - (15 Nm) and swivel center armrest to the side.

- Unclip storage compartment - 2 - from center console.





- Pull wire - 1 - in - direction of arrow - out of storage compartment - 2 -.

- Disconnect electrical connection beneath storage compartment.

Installing

- Install in reverse order.
