Telephone Baseplate, Front Center Armrest

Telephone System

Telephone Baseplate, Front Center Armrest

- Switch off all electrical consumers.

- Remove the key.

Removing

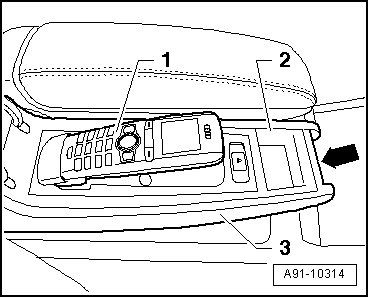

- Take telephone handset (R37) - 1 - out of telephone baseplate (R126).

- Remove SIM card of telephone baseplate.

- Starting at front - arrow -, carefully pry off storage compartment - 2 - from trim and lower cover - 3 -.





- Disconnect harness connector to wiring set and remove storage compartment.

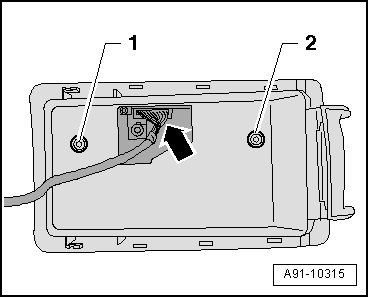

- Turn storage compartment around and remove bolts - 1 - and - 2 - (2 Nm).





- Disconnect harness connector - arrow - at underside.

- Push telephone baseplate out of storage compartment.

Installing

- Install in reverse order.
