Lane Assist System Overview

Component Locations: Lane Assist System

Lane Assist System Overview







1 - Lane Change Assistance Warning Lamp (in Driver exterior mirror) -K233-

2 - Lane Change Assistance Button -E530-

3 - Lane Change Assistance Warning Lamp (in front Passenger exterior mirror) -K234-

7 - Lane Change Assistance Control Module 2 -J770-
• Mounted on the rear bumper under the cover => [ Lane Change Assistance Control Modules ] See Image Below.

8 - Lane Change Assistance Control Module -J769-
• Mounted on the rear bumper under the cover => [ Lane Change Assistance Control Modules ] See Image Below.

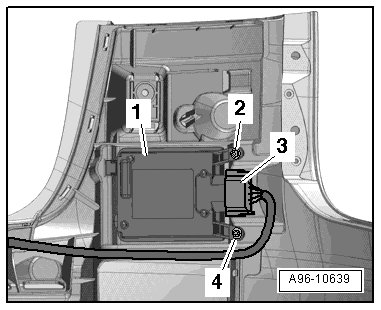

Lane Change Assistance Control Modules






1 - (Passenger side) Lane Change Assistance Control Module 2 -J770- / (Driver side) Lane Change Assistance Control Module -J769-
Mounted on the rear bumper under the cover
