MMI Installed Locations Overview, From 1 June 2009

Communication System

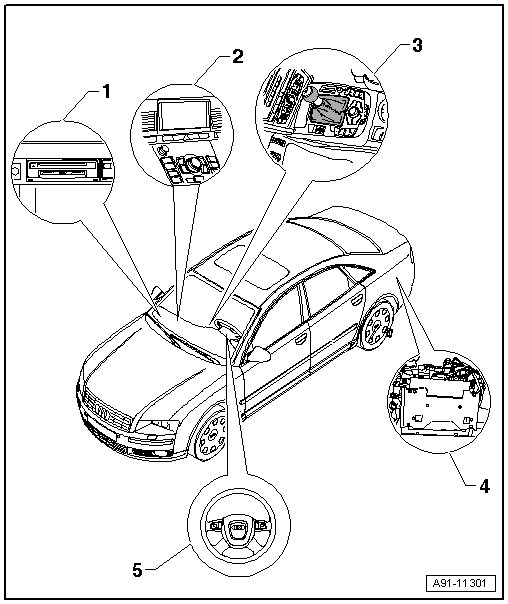

MMI Installed Locations Overview, from 1 June 2009





1 Information Electronics Control Module 1 (J794)

• At left in glove compartment.

• Connector assignment from 1 June 2009, refer to => [ MMI Connectors, from 1 June 2009 ]. MMI Connectors, From 1 June 2009

• Removing and installing (from 1 September 2008), refer to => [ Information Electronics Control Module 1, from 1 September 2008 ] Communication System.

2 Front Information Display Control Head (J685)

• In the center of the instrument panel.

• For connector assignment from 1 September 2008, refer to => [ Display Connectors, from 1 September 2008 ]. Display Connectors, From 1 September 2008

• Removing and installing, refer to => [ Display ] Communication System.

3 Multimedia Control Head (E380)

• In the bottom of the center console.

• Connector assignment, refer to => [ Multimedia System Control Head Connectors ]. Multimedia System Control Head Connectors

• Removing and installing, refer to => [ Multimedia Control Head ] Communication System.

4 Radio (R)

• Behind luggage compartment left side trim.

• Connector assignment from 1 June 2009, refer to => [ Radio Connectors, from 1 June 2009 ] Radio System.

• Removing and installing (from 1 September 2008), refer to => [ Radio, from 1 September 2008 ] Radio System.

- Digital Sound System Control Module (J525)

• Behind luggage compartment left side trim.

• BOSE 6000 connector assignment, refer to => [ Digital Sound System Control Module Harness Connectors, BOSE 6000 ] Radio System.

• Removing and installing Bose 6000, refer to => [ Digital Sound System Control Module, BOSE 6000 ] Radio System.

• BANG and OLUFSEN, connector assignments, refer to => [ Digital Sound System Control Module Harness Connectors, Bang and Olufsen ] Radio System.

• BANG and OLUFSEN, removing and installing, refer to => [ Digital Sound System Control Module, BANG and OLUFSEN ] Radio System.

5 Multifunction Steering Wheel

• Removing and installing buttons, refer to => [ Multi-Function Buttons ] Multi-Function Steering Wheel.
