Cylinder Head, Valvetrain - Fastener Tightening Specifications

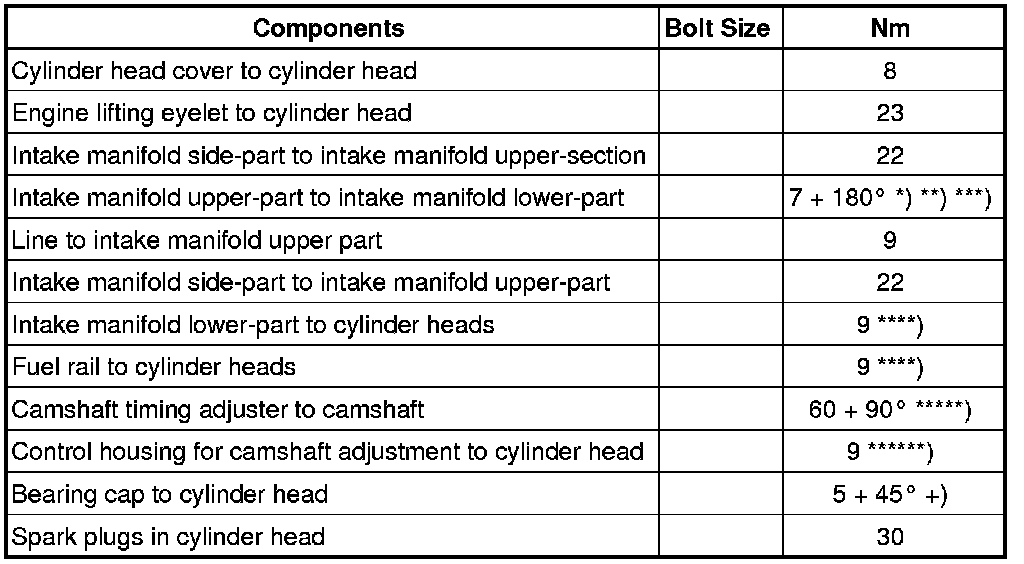

Fastener Tightening Specifications





*) Observe different bolt lengths.

**) Replace bolts.

***) 180° corresponds to a half turn.

****) Fasten diagonally in steps.

*****) 90° corresponds to one quarter rotation.

******) Insert using locking compound; locking compound.

+) 45° corresponds to one eighth rotation.
