Audio System - Acoustic Lens Tweeters Don't Slide
91 Bang & Olufsen: Both Acoustic Lens Tweeters Do Not Slide In Or Out Of The Dashboard91 09 17
2014157/4
March 25, 2009

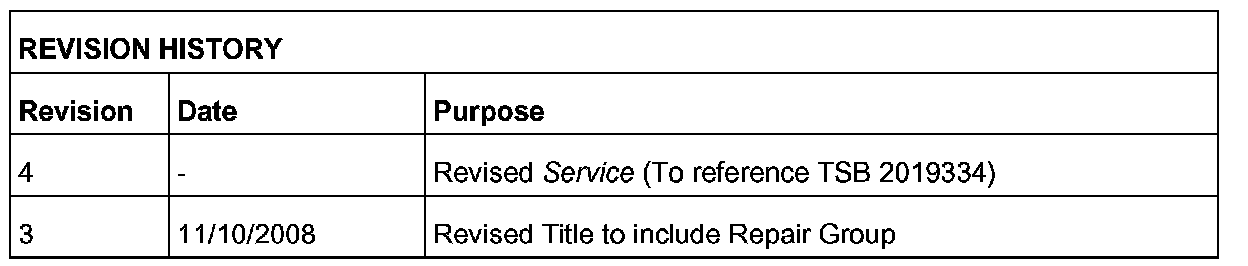

Supersedes Technical Service Bulletin Group 91 number 08-98 dated November 10, 2008 for reasons listed below.

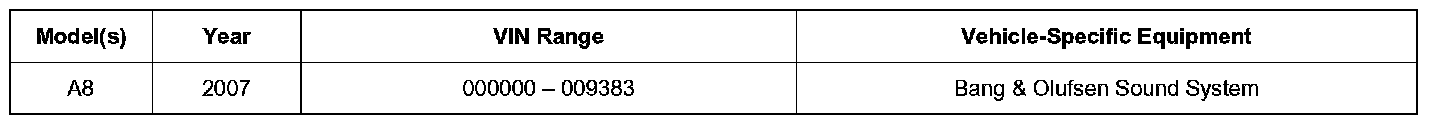

Vehicle Information
Condition
- The left and the right Bang & Olufsen acoustic lens tweeter assemblies do not slide in or out of the dashboard. This may happen consistently or sporadically.
- The Software Version of the Bang & Olufsen Amplifier is 0180.
Technical Background
Software fault in the amplifier.
Production Solution
Software improvement during model year 2007.
Service
An MMI system update must be performed. Refer to Technical Service Bulletin 2019334.

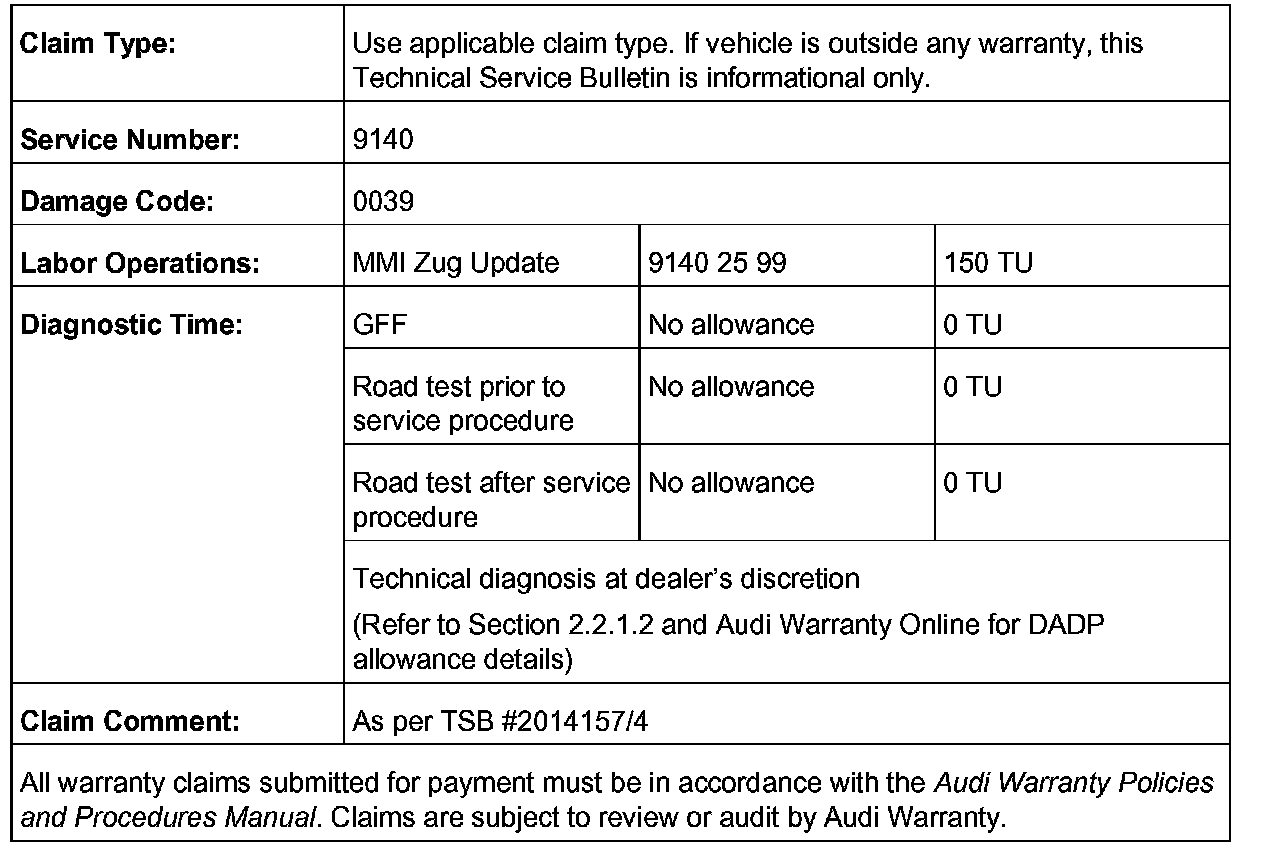

Warranty
Additional Information
The following Technical Service Bulletin(s) will be necessary to complete this procedure:
- TSB 2019334, 91 MMI High System software update (Zug 864 - update) procedure
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
