Interior - Noises From The Driver's Foot Rest
70 Noises from the driver footrest70 10 20
2016944/3
November 30, 2010.

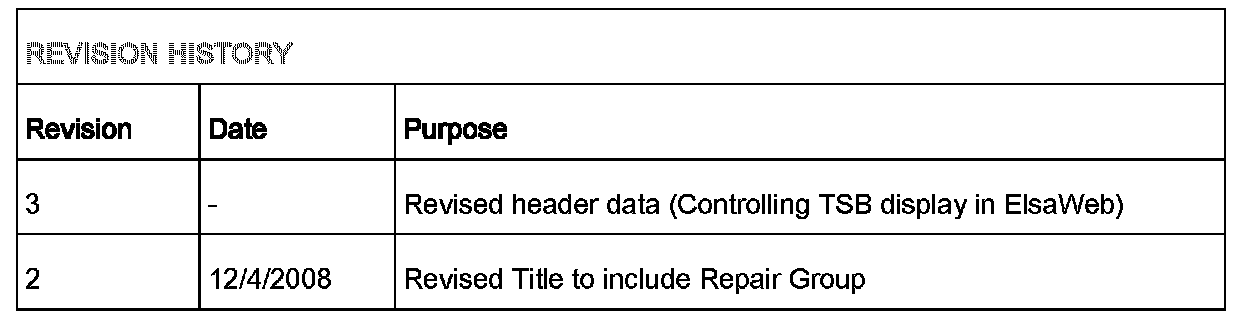

Supersedes Technical Service Bulletin Group 70 number 08-26 dated December 4, 2008 for reasons listed below.

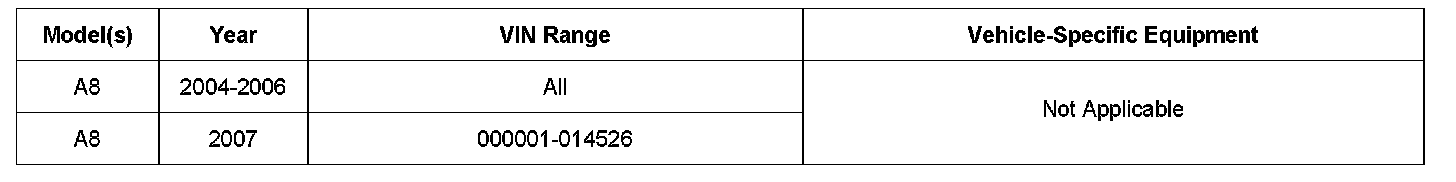

Affected Vehicles
Condition
Noises from the footrest when pressing on footrest trim while driving.
Technical Background
The metal mounting clips for the footrest trim rub in their mounting holes.
Production Solution
Two pieces of adhesive felt strip material are applied to the mounting holes so that the clip is isolated.
Service
1. Cut appropriate sections of the felt strip material and apply to the openings.

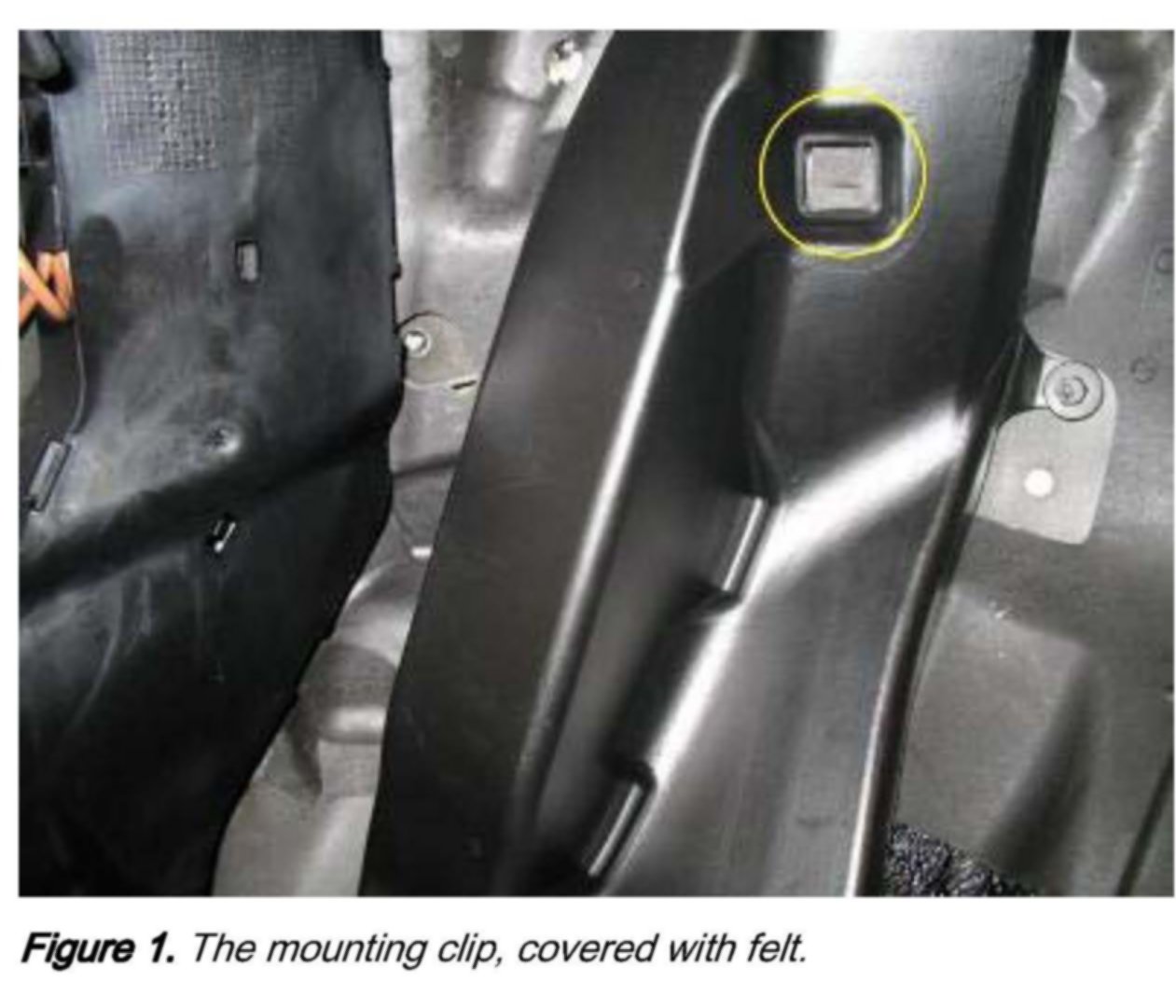

In Figures 1 and 2 felt strip material 533 867 910 A has been applied to isolate the mounting clips of the footrest trim.
2. Cut the felt into sections and apply so that the clip can slip through.
The clip now presses on the felt, and the felt covers the metal edges, preventing function noises.

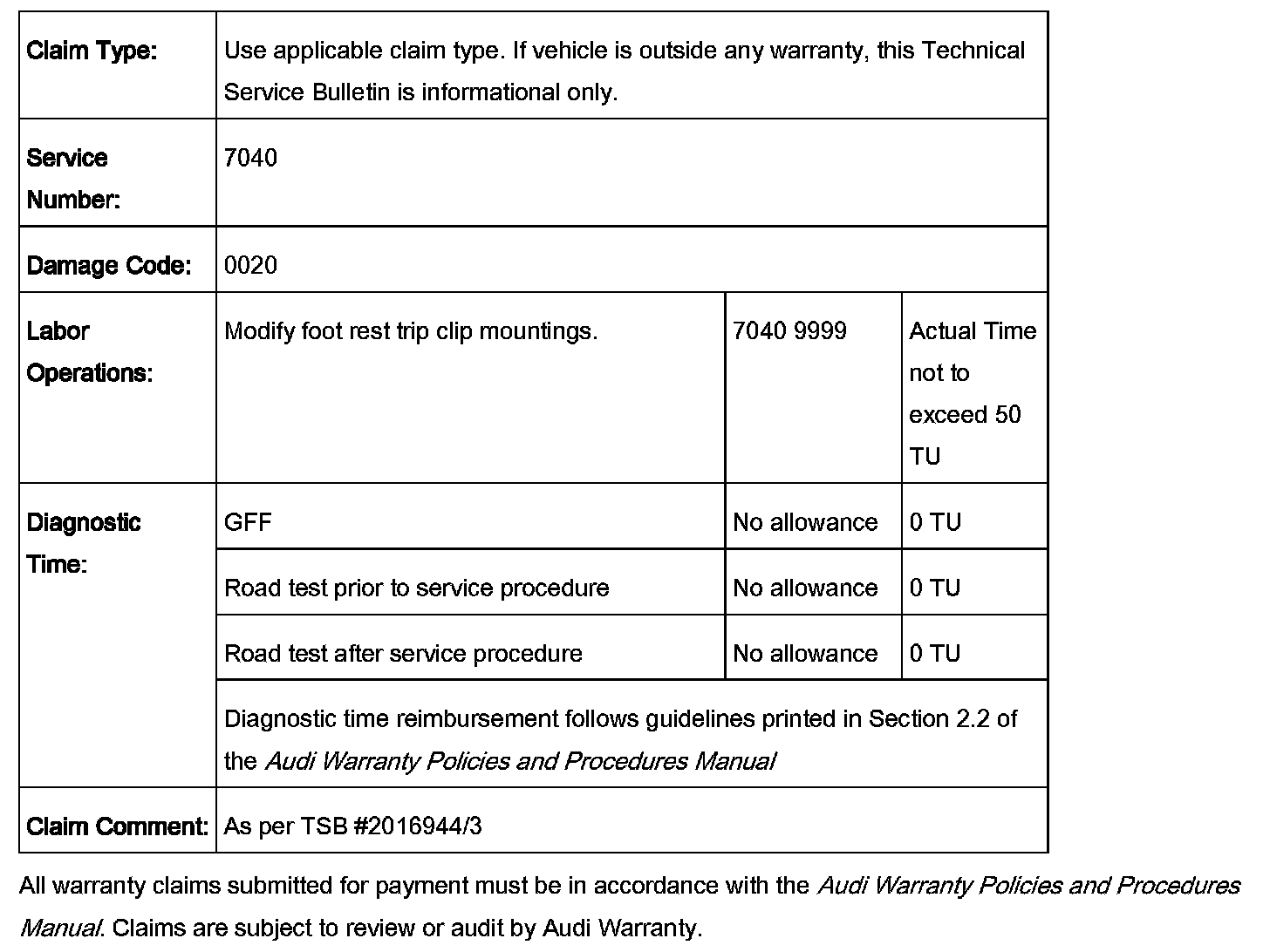

Warranty
Required Parts and Tools
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
