6-Speed Automatic Transmission 09E / L

Component Locations: Transmission Systems

6-Speed Automatic Transmission 09E / L



Transmission Control Module (TCM)






Transmission Control Module (TCM) -J217- , Multi-Function Transmission Range (TR) Switch -F125- , Transmission Input Speed (RPM) Sensor -G182- and Transmission Output Speed (RPM) Sensor -G195-

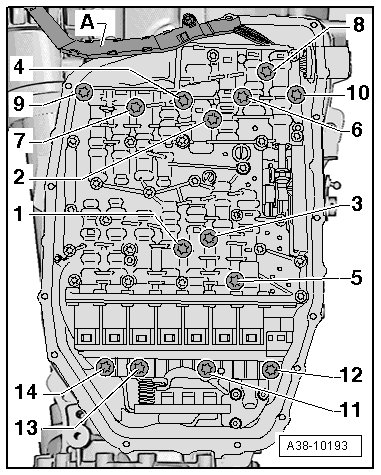

• Location: The mechatronic unit is bolted to the underside of the transmission
housing and is covered by the transmission oil pan.

The mechatronic unit incorporates the hydraulic control, the Transmission
Control Module (TCM), the Multi-Function Transmission Range (TR) Switch and
the sensors and actuators as a complete synchronized unit. Included are:
• Transmission Control Module (TCM) -J217-

• Multi-Function Transmission Range (TR) Switch -F125-

• Transmission Input Speed (RPM) Sensor -G182-

• Transmission Output Speed (RPM) Sensor -G195-


Note:
• The "mechatronic" unit can only be replaced as a complete unit.

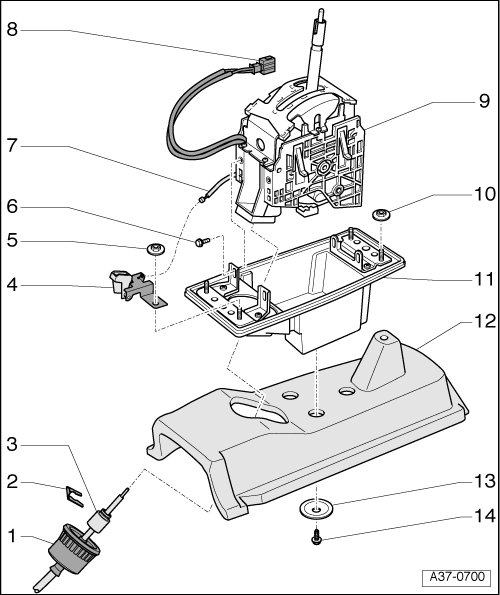

Selector Mechanism Overview







7 - Manual Release Actuator Cable

8 - Electrical Connector
• For Shift Lock Solenoid -N110- and Transmission Park Selector Switch -F305-

9 - Selector Mechanism Function Unit
• With Shift Lock Solenoid -N110- and Transmission Park Selector Switch -F305-
• Can only be replaced as complete unit


Tiptronic Switch






Location: Tiptronic Switch -F189- is integrated
into circuit board of symbol insert, which is located in shift mechanism cover


Kick Down Switch



Kick Down Switch






Location: Kick Down Switch -F8- is located
on vehicle floor
