Rear Lid Window Assembly Overview

Flush-Bonded Windows

Rear Lid Window Assembly Overview





1 - Rear Window

• Removal, refer to => [ Rear Window ] Flush-Bonded Windows

• Distance - a - to upper window edge = 3.5 mm

• Distance - b - to side window edge = 2 mm, align if necessary.

2 - Adhesive Sealing Material

• Spacing to window edge along circumference 16 mm.

• Bead cross section

• Bead width = 8 mm ±2 mm"

• Bead height = 12 mm ± 3 mm

3 - Cover profile

• Can be replaced, refer to => [ Rear Window Cover Profile ] Flush-Bonded Windows.

4 - Spacer

• Note different heights for standard glass and tinted glass.

• Adhere spacer onto markings at lower window edge.

5 - Lower Cover Profile

6 - Clamping Pin

7 - Adhesive End Profile

• Adhere next to vertical rear window defrosting strips => [ Adhere Adhesive Stopper Profile ]

• Place inner edge of adhesive stop profile to outer edge of distributing wire for rear window heater and press on.

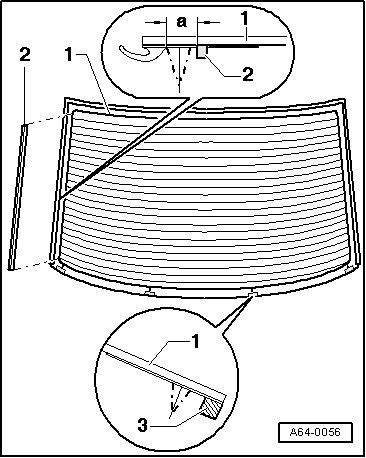

Adhere Adhesive Stopper Profile





- Place inner edge of adhesive stopper profile - 2 - to outer edge of distributing wire for rear window heater and press on.

- Adhere spacer - 3 - onto rear window - 1 - according to the markings.
