Campaign 66C9 - Roof Trim Moulding Modification: Overview

RVU - Roof trim loose (CD / 66C9)

66 10 02

2018399/5

January 29, 2010.

Supersedes Technical Service Bulletin Group 66 number 08-22 dated December 15, 2008 for reasons listed below.

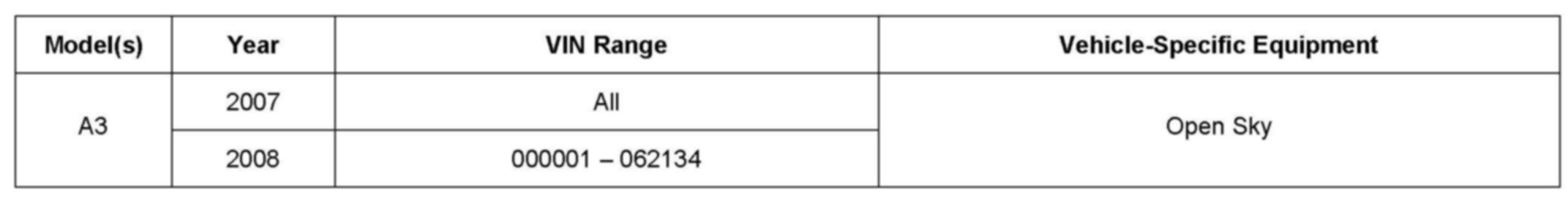

Affected Vehicles





Condition

This RVU has been proactively released to prevent the following condition from occurring in the vehicle:





The roof channel trim on either side of the Open Sky Roof is loose. Typically the trim is lifting in the rear.

In some cases, the trim has lifted high enough that it comes in contact with the rear lid when the rear lid is opened. The trim can then be forced forward, causing damage to the trim, rear lid, etc.

This Required Vehicle Update (RVU) is in effect for 15 months from date of publication. After that date, this RVU will expire and no longer be in effect.

Vehicle must meet all of the following criteria:

^ Procedure is valid only for vehicles that show the 66C9 code in the ElsaWeb Campaign/Action Information screen on the day of repair.

^ Vehicle must be within the Limited New Vehicle Warranty.

^ Procedure must be performed within the allotted time frame stated in this Technical Service Bulletin.

^ Procedure must be performed on applicable vehicles in dealer inventory prior to sale.

Technical Background

Too few roof channel mounting clips.

Production Solution

Additional clips to be added to the molding.








Warranty

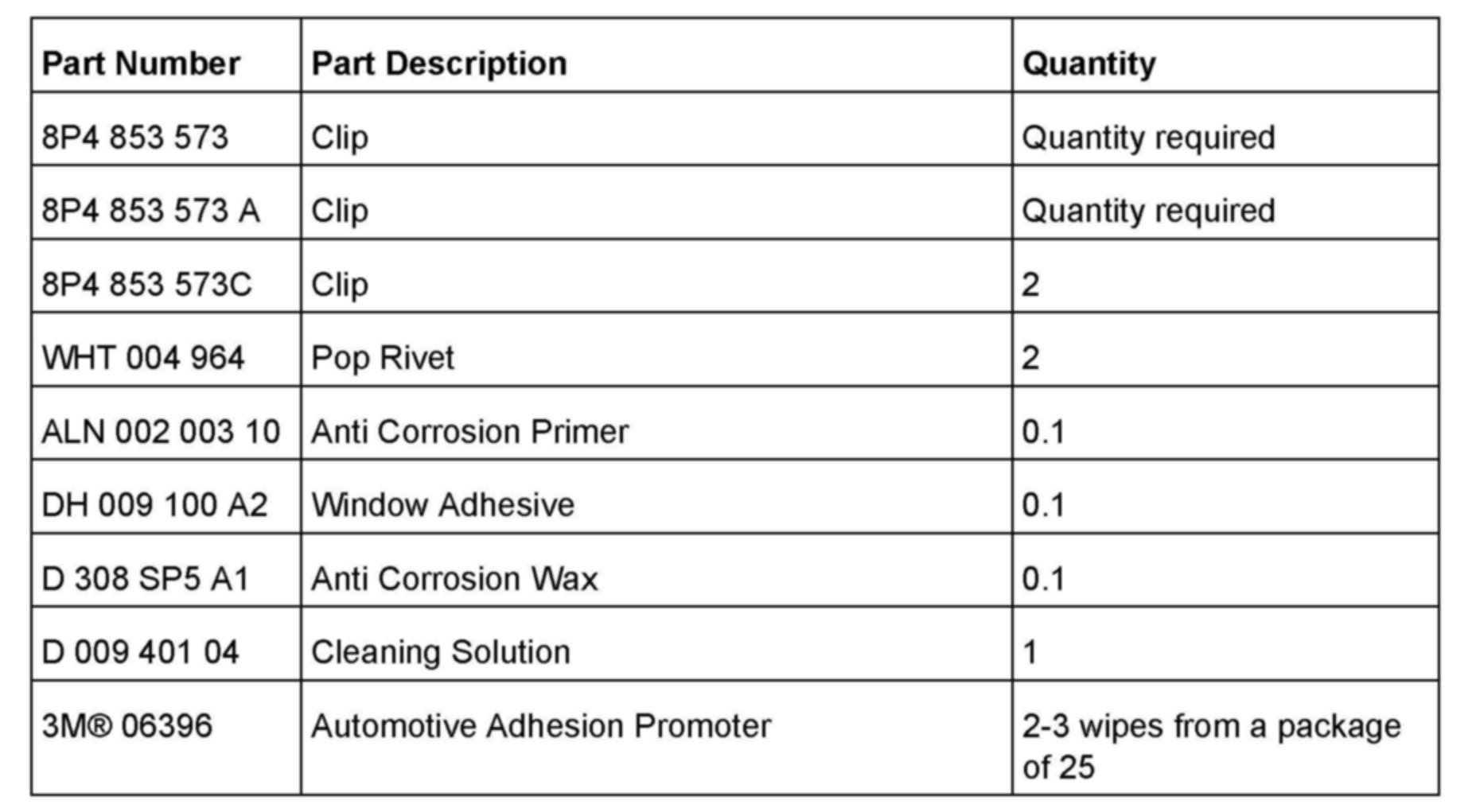

Required Parts and Tools

^ Destroy and properly dispose of removed parts in accordance with local, state and federal/provincial environmental regulations.

^ If you have exhausted your allocated parts and you require additional parts for vehicles affected by this RVU but have exceeded your Upper Order Limit, please submit your requests for additional parts via email. Be sure to include the affected VINs with your order. Prior to submitting your request, ensure that each vehicle has the 66C9 code open in ElsaWeb. Your order will be reviewed and processed accordingly.

Additional Information

All parts and service references provided in this RVU are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
