Housing Assembly HVAC: Locations

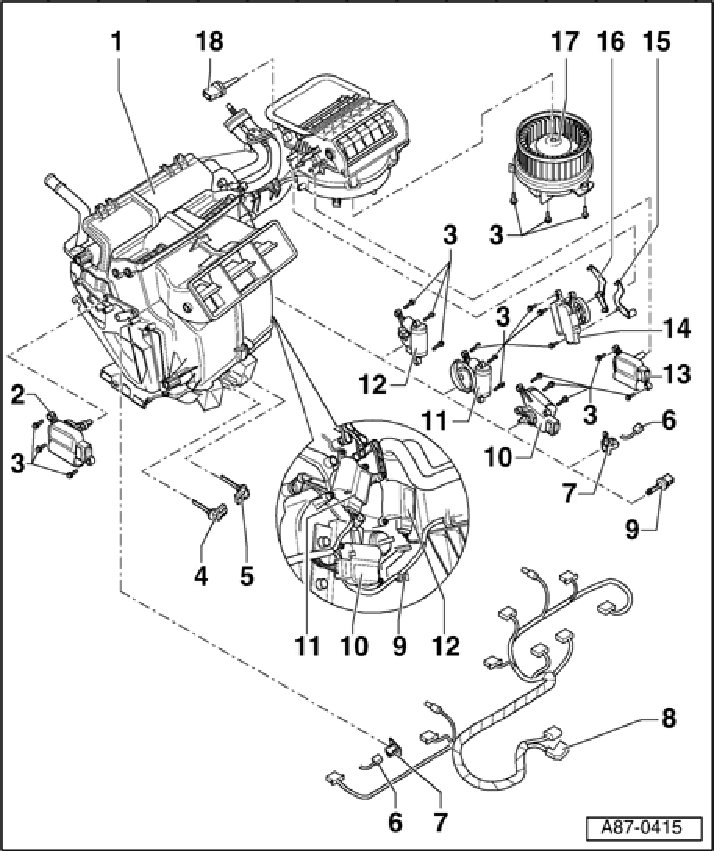

Heating And A/C Unit







1 - Heating and A/C unit
2 - Left Temperature Flap Motor V158
- With Left Temperature Flap Potentiometer/Actuator G220
- Lever color code: Red (yellow for right-hand drive vehicles)
3 - Bolt
4 - Left Footwell Vent Temperature Sensor G261
5 - Right Footwell Vent Temperature Sensor G262
6 - Cable ties
7 - Bracket for wiring harness
8 - "Air conditioner" wiring harness
9 - Evaporator Vent Temperature Sensor G263
10 - Right Temperature Flap Motor V159
- With Right Temperature Flap Potentiometer/Actuator G221
- Lever color code: dark purple
11 - Central Air Flap Motor V70
- With Central Flap Motor Position Sensor G112
- Cam plate color code: White
12 - Defroster Flap Motor V107
- With Defroster Flap Motor Position Sensor G135
- Lever color code: Dark green
13 - Recirculation Flap Motor V113
- With Recirculation Flap Motor Position Sensor G143
- Lever color code: Blue (light blue with additional lugs for activation of fresh-air flap on right-hand drive vehicles)
14 - Air Flow Flap Motor V71
- With Back Pressure Flap Motor Position Sensor G113
- Cam plate color code: Light blue
15 - Lever
16 - Lever
17 - Fresh Air Blower Control Module J126 and Fresh Air Blower V2
- The Fresh Air Blower V2 contains the Fresh Air Blower Control Module J126 as an integral component which cannot be replaced separately.
18 - Fresh Air Intake Duct Temperature Sensor G89
