Air Bag Deactivation Indicator: Service and Repair

Front Passengers Airbag Disabled Indicator Lamp K145 - From 11.04, Removing And Installing

Special tools, testers and auxiliary items required







- Hook 3370

Removing
- Open glove compartment.

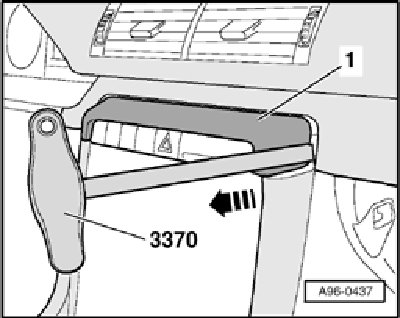

- Carefully remove trim panel - 1 - using hook 3370 as illustrated.







- Carefully pry out lever out indicator lamp - 1 - from switch mounting - arrows - using a flat screwdriver.
- Disconnect electrical connection.

Installing
Install in reverse order of removal, noting the following:
- Push lamp assembly into mounting in instrument panel and ensure it is properly engaged.
