Wiper Motor: Locations

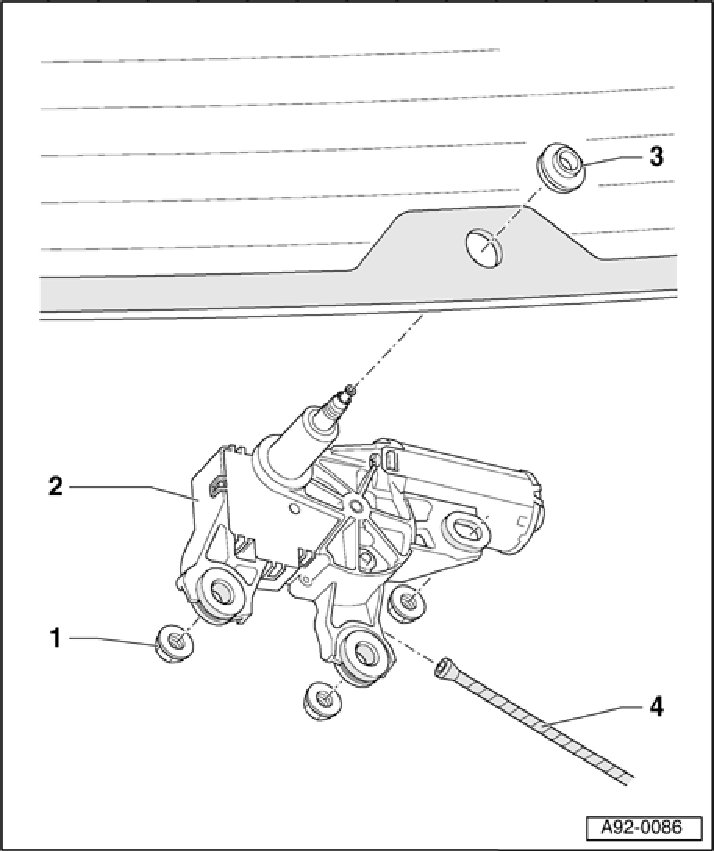

Rear Window Wiper Motor, Assembly







1 - Nut, 8 Nm
2 - Wiper motor
3 - Rubber grommet
4 - Washer fluid hose
