Air Routing and Distribution in Passenger Compartment

Air Routing and Distribution in Passenger Compartment

• Air intake and air guide in air conditioner. Refer to => [ Air Intake and Air Guide in Air Conditioner ] Air Intake and Air Guide in Air Conditioner

• Component locations of individual components. Refer to => [ A/C System Components Outside Passenger Compartment ] A/C System Components Outside Passenger Compartment, => [ A/C System Control and Regulation Components inside Passenger Compartment ] A/C System Control and Regulation Components inside Passenger Compartment and => [ A/C Unit Components in Passenger Compartment ] A/C Unit Components in Passenger Compartment.

• Description of items "F1" to "N2". Refer to => [ Air Intake and Air Guide in Air Conditioner ] Air Intake and Air Guide in Air Conditioner

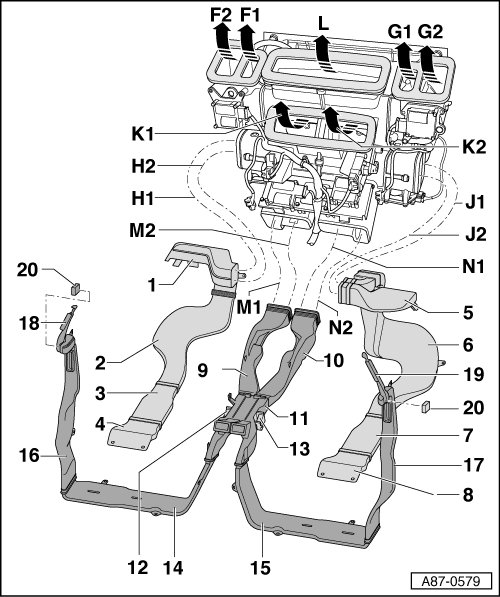

1 Air guide and left front footwell vent

2 Air duct to rear left footwell vent

3 Air duct to rear left footwell vent

4 Left rear footwell vent

• Vehicles with Rear A/C Control Head (Climatronic) (E265) are equipped with Left Rear Footwell Heater (Z42).

5 Air guide and right front footwell vent

6 Air duct to rear right footwell vent

7 Air duct to rear right footwell vent

8 Right rear footwell vent

• Vehicles with Rear A/C Control Head (Climatronic) (E265) are equipped with Right Rear Footwell Heater (Z43).

9 Air duct to left footwell vents

10 Air duct to right footwell vents

11 Rear air vent distribution

• Different versions on vehicles with and without Rear A/C Control Head (Climatronic) (E265)

12 Left Rear Warm/Cold Door Air Outlet Motor (V220)

• Only actuates doors for left side on vehicles with Rear A/C Control Head (Climatronic) (E265)

• Connecting element between door and motor is "red" colored

• On vehicles without Rear A/C Control Head (Climatronic) (E265) (without Right Rear Warm/Cold door Air Outlet Motor (V221)), doors for right side are also moved via a joint shaft by Left Rear Warm/Cold door Air Outlet Motor (V220).

13 Right Rear Warm/Cold Door Air Outlet Motor (V221)

• installed only on vehicles with Rear A/C Control Head (Climatronic) (E265).

• Connecting element between door and motor is "blue" colored

• On vehicles without Rear A/C Control Head (Climatronic) (E265) (without Right Rear Warm/Cold door Air Outlet Motor (V221)), doors for right side are moved via a joint shaft by Left Rear Warm/Cold door Air Outlet Motor (V220).

14 Air duct to vents in left "B" pillar

15 Air duct to vents in right "B" pillar

16 Air duct in left "B" pillar

17 Air duct in right "B" pillar

18 Air duct to vent for dehumidifying door window in left " B" pillar

• installed only on vehicles with Rear A/C Control Head (Climatronic) (E265).

19 Air duct to vent for dehumidifying door window in right " B" pillar

• installed only on vehicles with Rear A/C Control Head (Climatronic) (E265).

20 Cap

• Installed on vehicles without Rear A/C Control Head (Climatronic) (E265) instead of air guide to vents for dehumidifying door window in "B" pillar.
