Backup Lamp: Service and Repair

Back-Up Lamp and Rear Fog Lamp Bulb

Removing

- Remove inner rear light. Refer to=> [ Inner Tail Lamps, through 08.07 ] Inner Tail Lamps, Through 08.07.

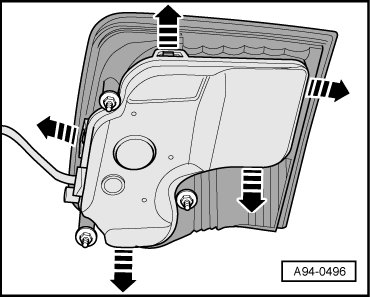

- Press catches apart - arrows - and detach housing cover.





- Unplug connectors - 2 -.





- Remove bolts - 1 - and detach socket with bulb.

Installing

Install in reverse order of removal, observing the following:

- Install inner rear light. Refer to=> [ Inner Tail Lamps, through 08.07 ] Inner Tail Lamps, Through 08.07.
