Body/Interior - Sunroof Headliner Doesn't Tilt Correctly: Overview
60 Sunroof headliner does not tilt correctly when sunroof panel is vented60 10 11
2016022/5
October 5, 2010

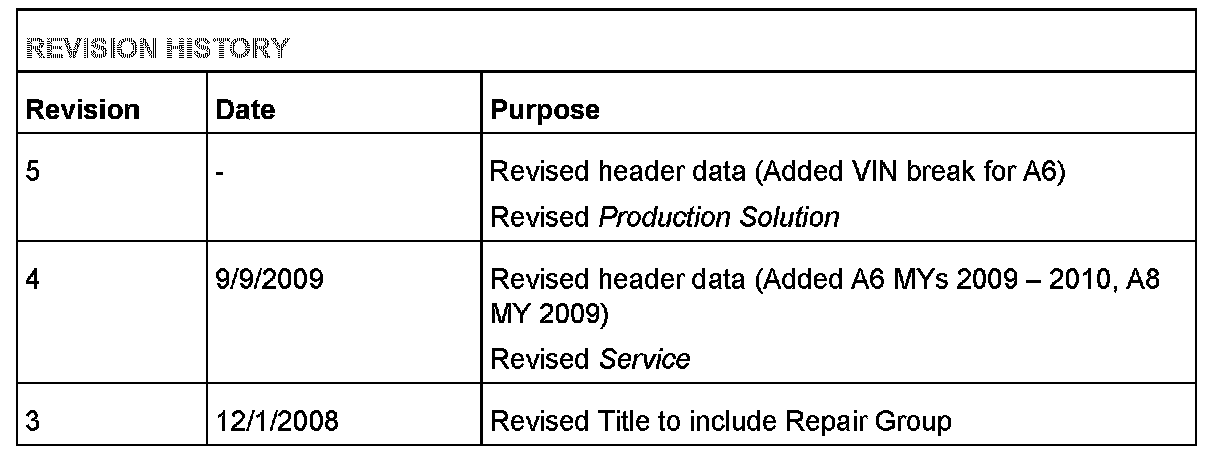

Supersedes Technical Service Bulletin Group 60 number 09-09 dated September 9, 2009 for reasons listed below.

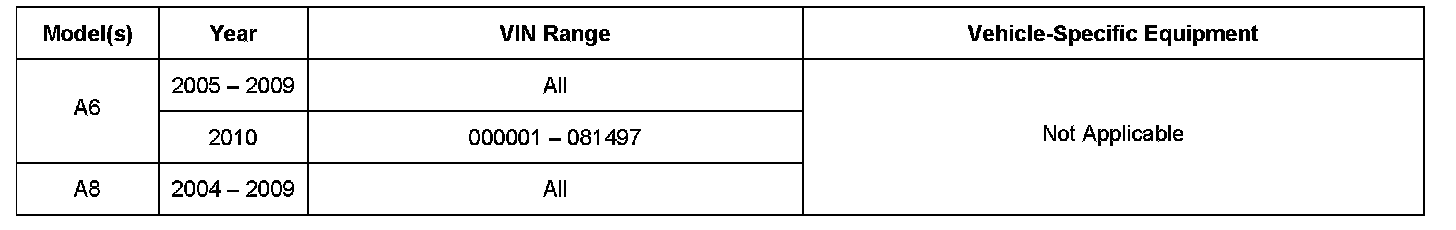

AFFECTED VEHICLES
CONDITION
^ When the sunroof panel headliner is closed and the sunroof panel is vented, the sunroof panel headliner will not move to the vent position.
^ When the sunroof panel headliner is open, the glass sunroof panel is vented, and the sunroof panel headliner is closing, the sunroof panel headliner will not move to the vent position.
^ The sunroof panel may stick.
^ Sunroof operation may be noisy.
TECHNICAL BACKGROUND

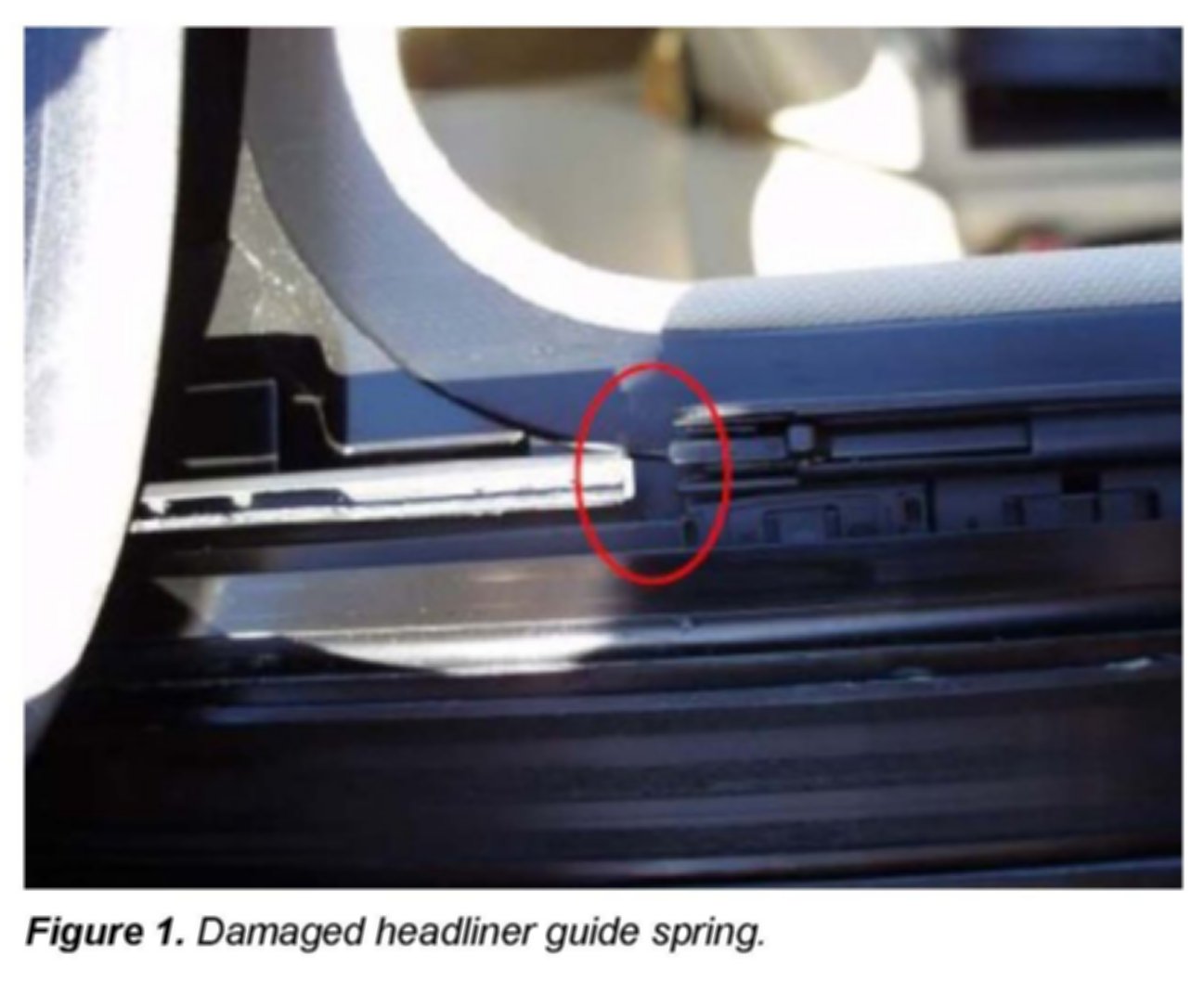

The sliding headliner guide spring on the sunroof frame is damaged, broken or deformed.
PRODUCTION SOLUTION
New guide springs in production.

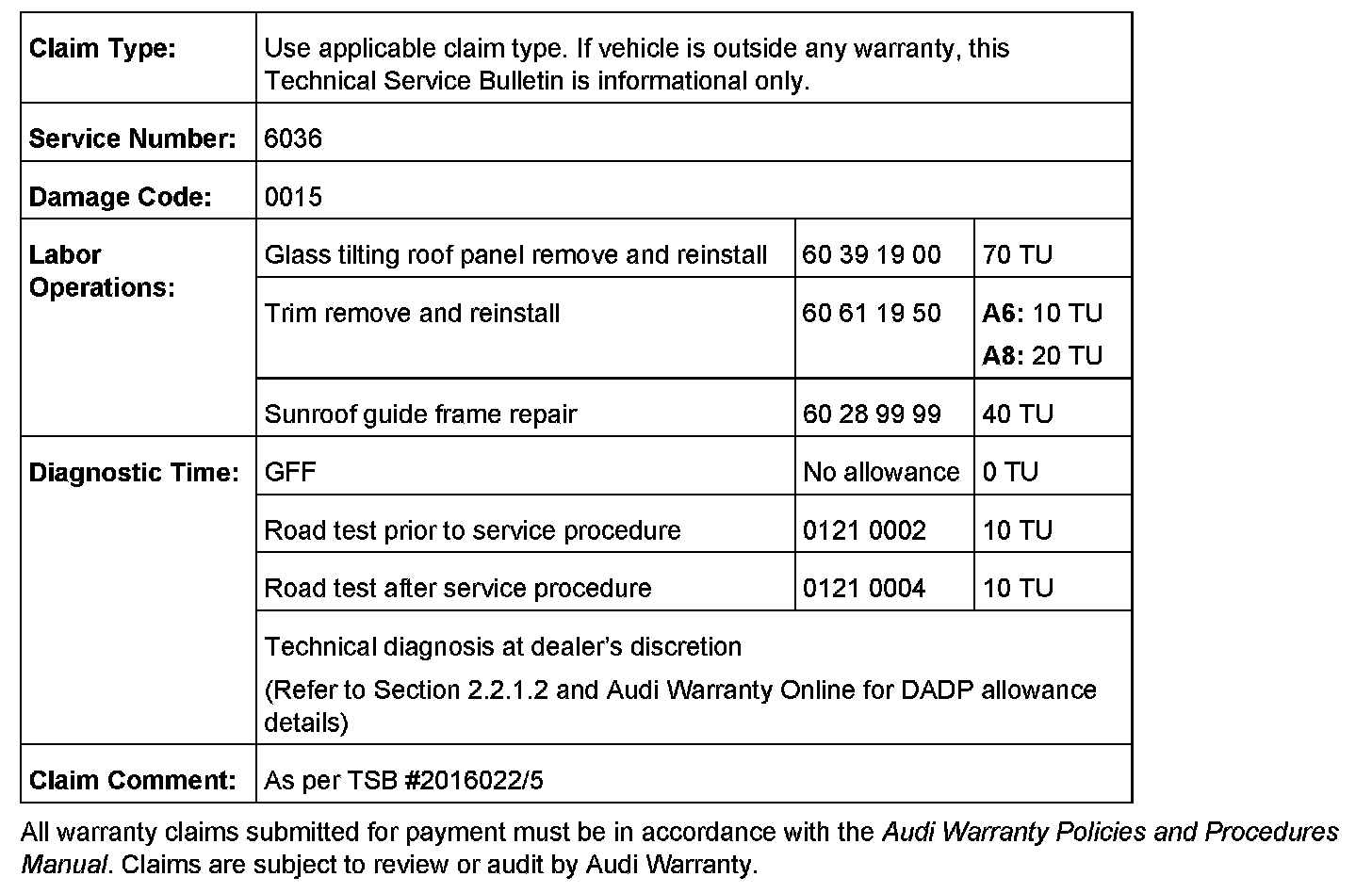

WARRANTY

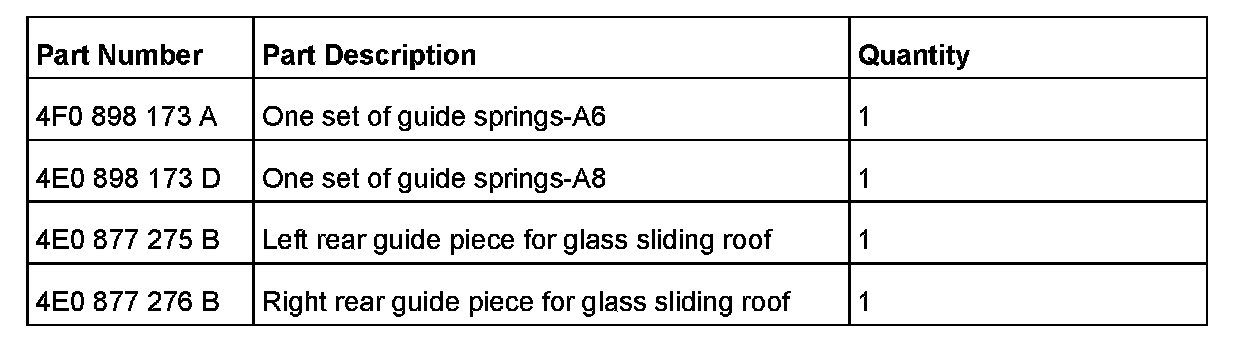

REQUIRED PARTS AND TOOLS
ADDITIONAL INFORMATION
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
