Wipers/Washers - Headlamp Washer System Is Inoperative
92 Headlight washer system is inoperative92 10 04
2020974/2
July 15, 2010
Supersedes Technical Service Bulletin Group 92 number 09-04 dated June 25, 2009 for reasons listed below.
Affected Vehicles
Condition
Headlight washer system pump is inoperative.
Technical Background
The right front wheel housing liner makes contact with the headlight washer pump. As a result, water can gather at this point of contact. This leads to corrosion in the headlight washer pump.
Production Solution
Improved shape of the wheel housing liner in the area of the headlight washer pump.
Service
In cases where the headlight washer pump is inoperative for the reason described in the Technical Background:
1. Replace the headlight washer pump.
2. Replace the right front wheel housing liner with part number 4E0 821 192 F.

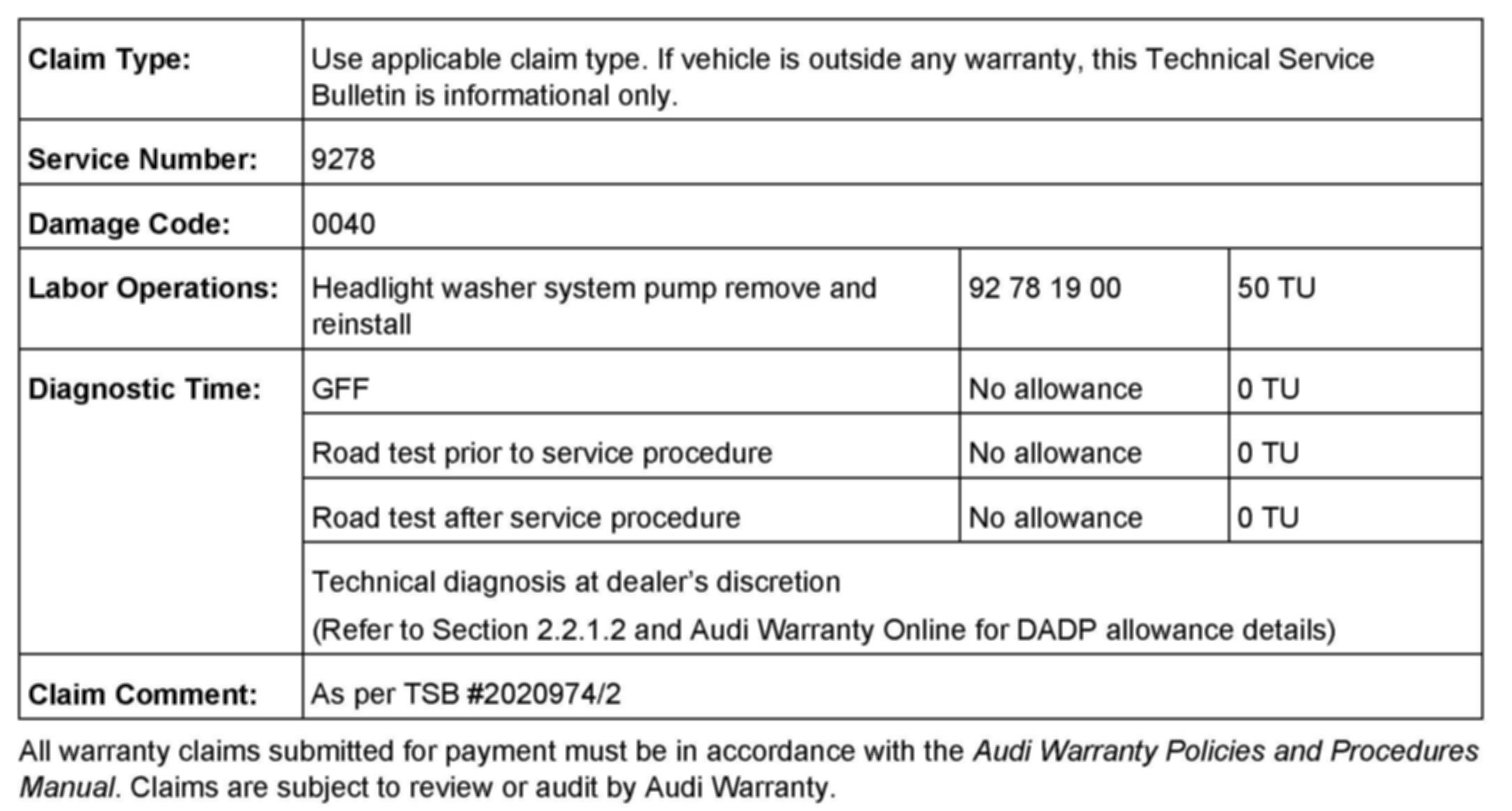

Warranty
Required Parts and Tools
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
