Audio System - Installation List Malfunction Entry
91 08 1792018163/3

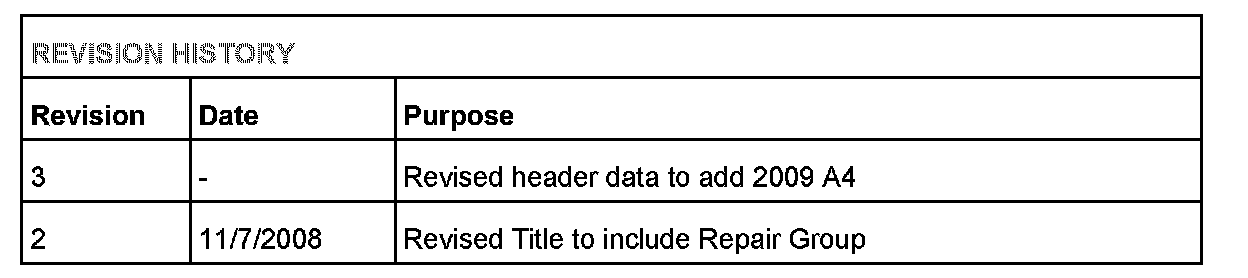

December 15, 2008. Supersedes Technical Service Bulletin Group 91 number 08-68 dated November 7, 2008 for reasons listed below.
Affected Vehicles
91 Gen III radio: Gateway installation list malfunction entry, radio functions normally
Condition
Figure 1:
The gateway installation list indicates a malfunction the radio; however, when the radio (address word memory is read out with the VAS diagnostic tool, DTC is stored.
The radio functions normally.
Technical Background
Not applicable.
Production Solution
Not applicable.
Service
The entry in the gateway installation list does not restrict the radio functionally and is not customer relevant. In the case of this indicated malfunction entry in the gateway installation list, proceed as follows:

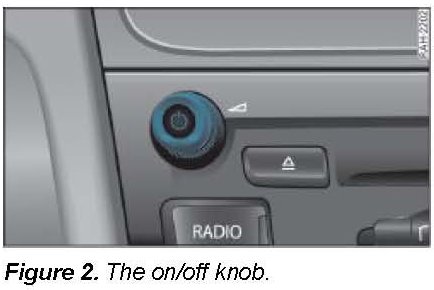

Figure 2:
1. Perform a software reset of the radio by pushing and holding down the on/off button (this should not take longer than 30 seconds). This is also described in the radio Operating Instructions manual (under the section "Restarting the radio").
2. After the radio reboots, verify that the malfunction entry in the gateway installation list has been removed.
Warranty
This TSB is informational only and not applicable to any Audi warranty.
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
