Body - Buffeting Noise In Cabin With Sunroof Open

60 Buffeting noise in cabin

60 10 02

2019731/2

April 27, 2010.

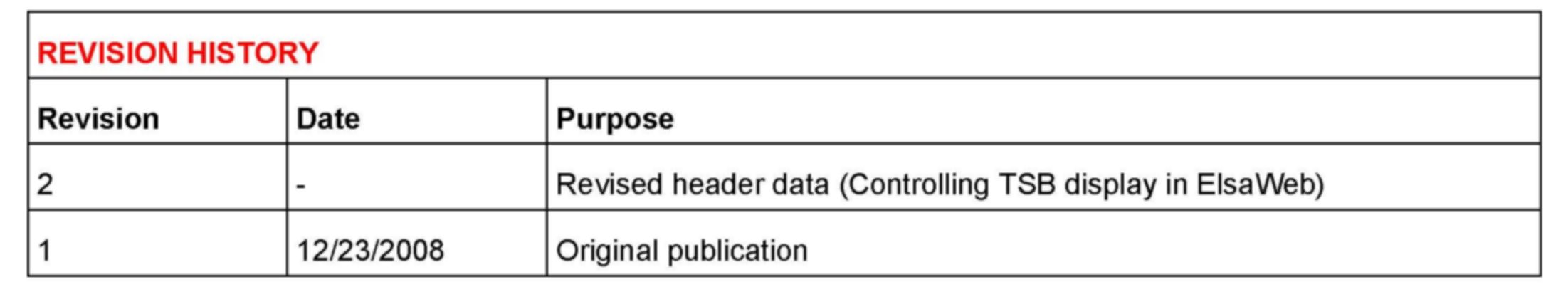

Supersedes Technical Service Bulletin Group 60 number 08-33 dated December 23, 2008 for reasons listed below.

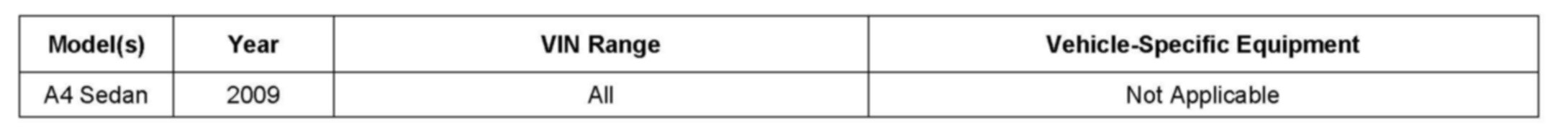

Affected Vehicles





Condition

Rhythmic pressure wave or buffeting noise is heard in cabin with the sunroof open to the comfort position and a road speed range of 35 mph to 45 mph.

Technical Background

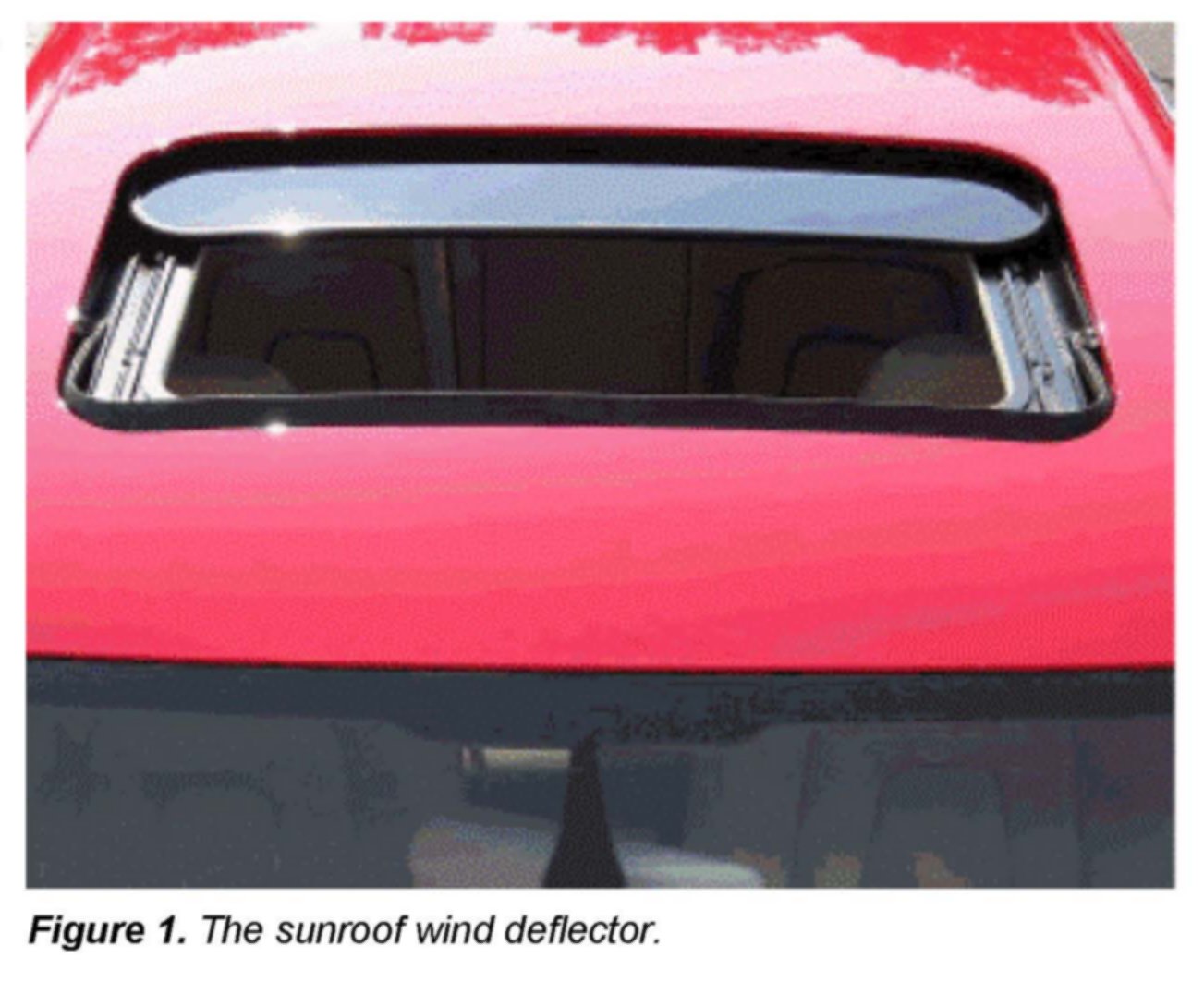

The shape of the sunroof wind deflector may make this symptom occur within this speed range.

Production Solution

None.

Service

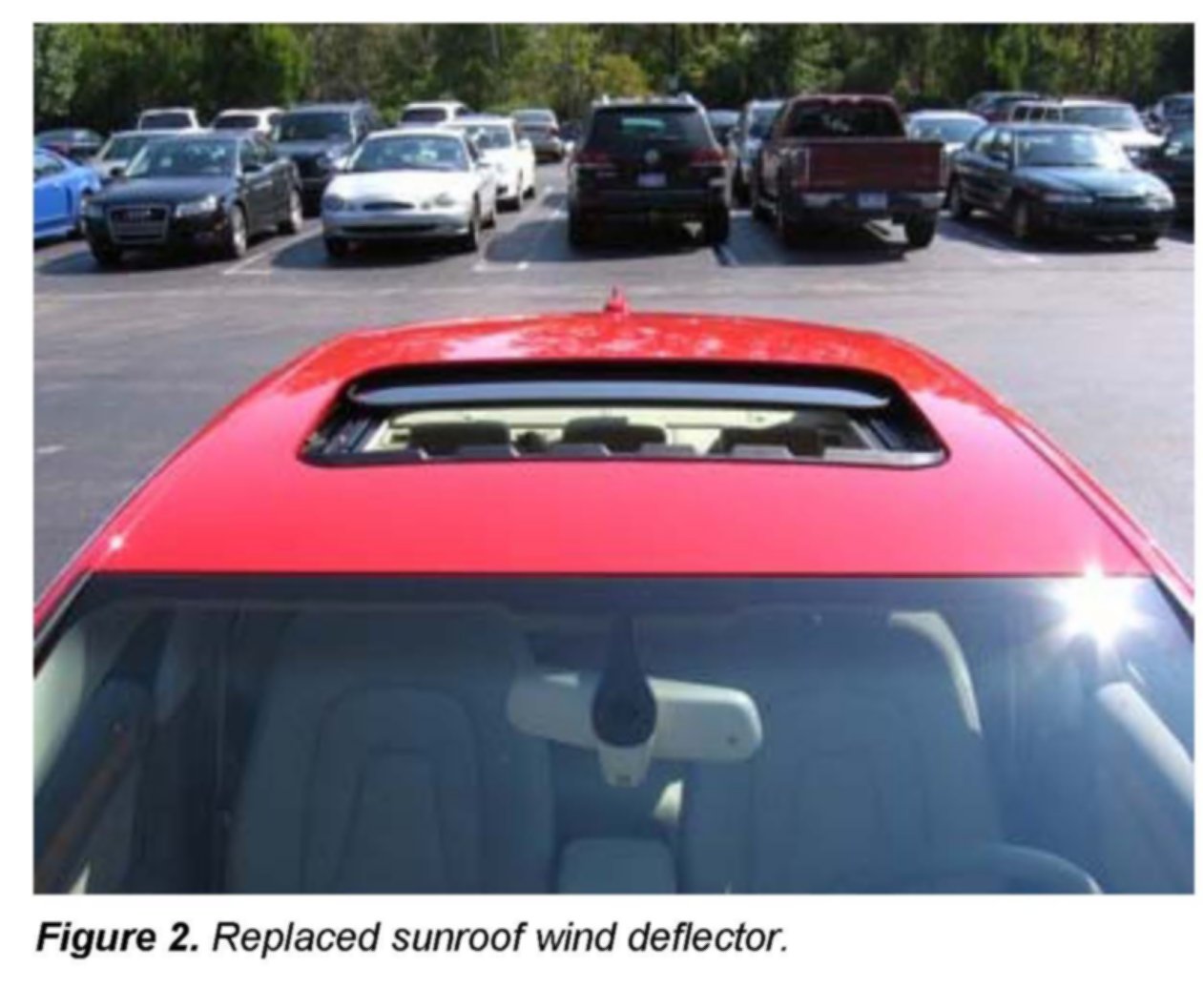

An effective solution is to replace the current wind deflector with wind deflector 8D9 877 651 A.

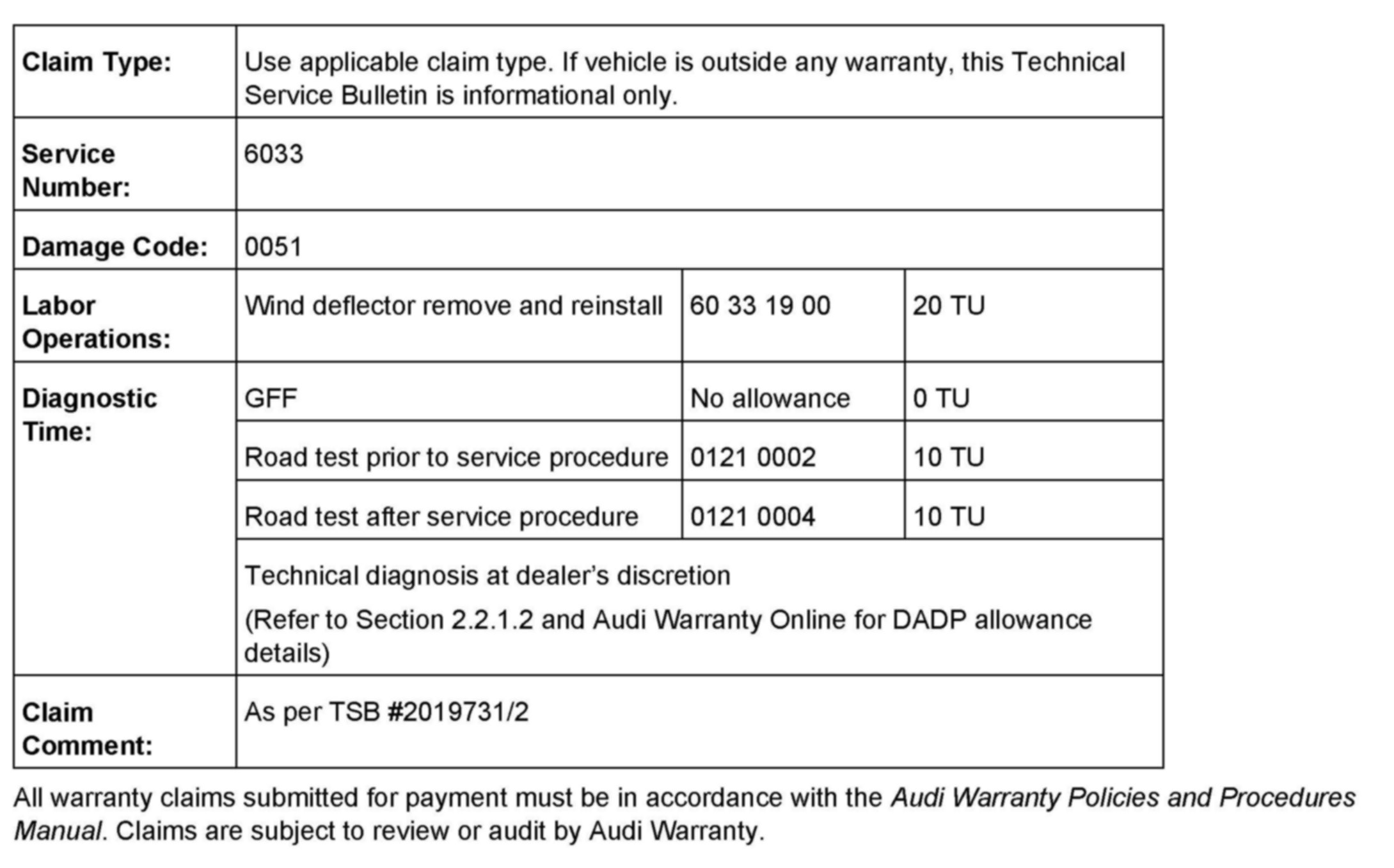

Warranty

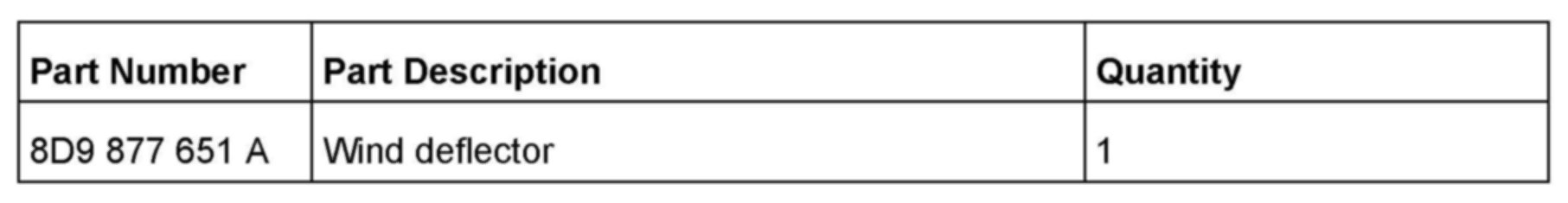

Required Parts and Tools

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
