Interior - Poor Seat Back Cover Appearance At Head Rest
74 S-line front seat head restraint feed-through hole exposed in leather backrest cover74 09 01
2018257/3
September 21, 2009.

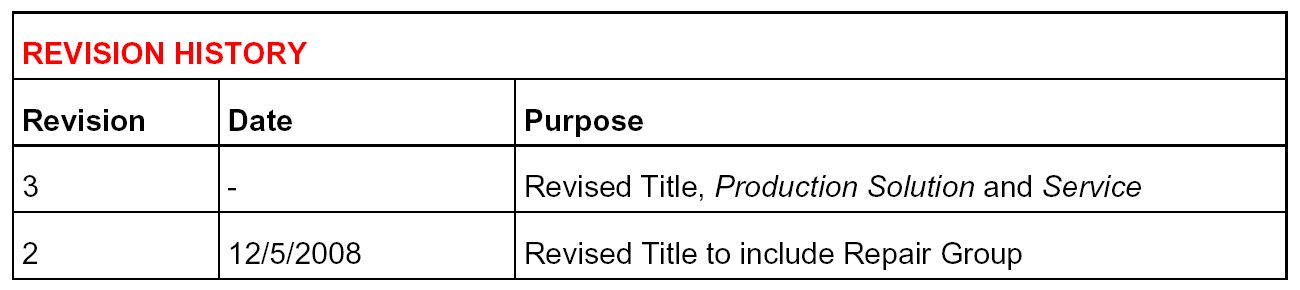

Supersedes Technical Service Bulletin Group 74 number 08-07 dated December 5, 2008 for reasons listed below.

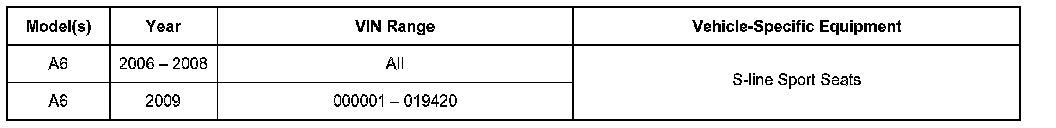

Affected Vehicles
Condition

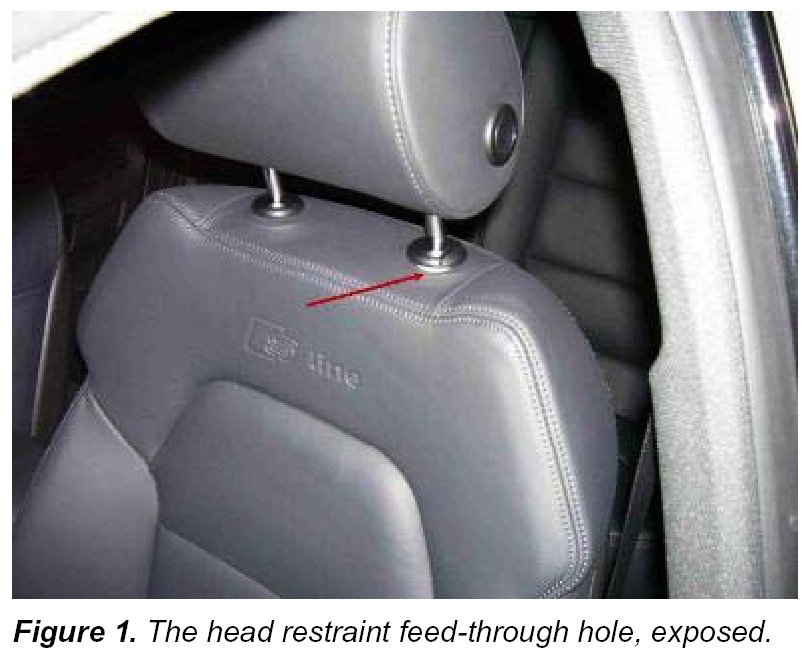

The head restraint feed-through hole is visible on the seat backrest cover.
Technical Background
Depending on how the customer enters the vehicle, the leather backrest cover may be pulled forward, exposing the feed-through hole for the head restraint. This condition only affects vehicles with S-line sport seats.
Production Solution
The construction of the S-line seat backrest cover has been optimized in production vehicles. The changes included the following:
- The locations of the feed-through holes were moved back.
- The diameter of the feed-through holes was reduced.
- An additional piece of stabilizing material was attached to the inside of the backrest cover around the holes to ensure better adhesion of the leather to the seat back cushion.
Service
Replace the front seat backrest cover.

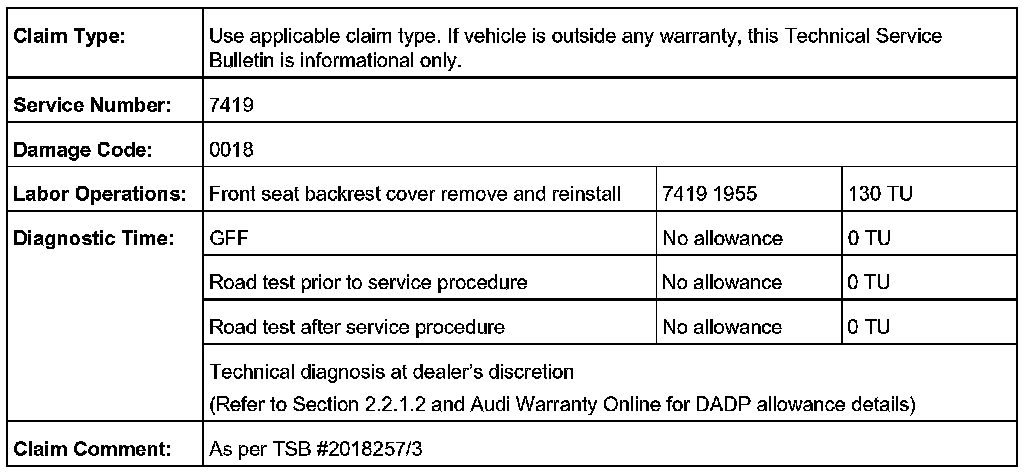

Warranty
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

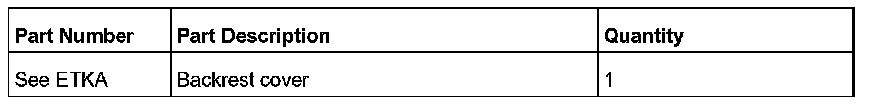

Required Parts and Tools
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
