Suspension - Air Suspension DTC 1577 Information

43 Air suspension operative (DTC 1577)

43 09 04

2018304/4

July 22, 2009.

Supersedes Technical Service Bulletin Group 43 number 08-15 dated November 18, 2008 for reasons listed below.

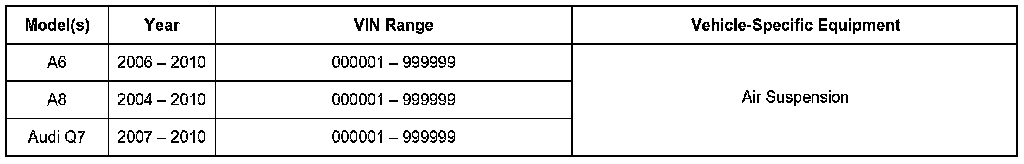

Affected Vehicles

Condition





REVISION HISTORY

DTC 01577 (compressor switch off due to excessive temperature, sporadic) is stored in the air suspension control module.

Technical Background

The air suspension module will log DTC 01577 (compressor switch off due to excessive temperature, sporadic) each time the air suspension compressor is shut off due to excessive temperature. The compressor will resume normal function after a short cool down period (30 seconds to 4 minutes), but the DTC will remain logged in the air suspension control module.

This DTC does not indicate a compressor malfunction.

Production Solution

Service

Do not replace the air suspension compressor for the above condition.

Warranty

This TSB is informational only and not applicable to any Audi warranty.

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
