Wiper Blade: Service and Repair

Windshield Wiper Blades

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing

- Bring windshield wiper into service position. Refer to => [ Windshield Wipers, Bringing into Service Position ] Procedures.

- Lift off wiper arm from front windshield.

- Compress clip - arrows 1 -.





- Push wiper blade off wiper arm - arrow 2 -.

- Remove wiper blade.

Installing

Install in reverse order of removal, observing the following:

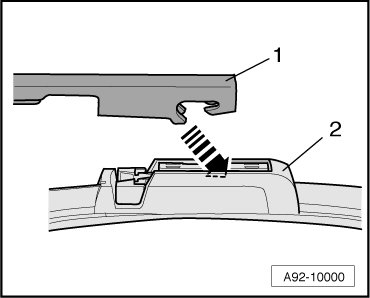

- Guide the wiper blade - 2 - parallel into the wiper arm - 1 - - arrow -. Make sure wiper arm rest completely in guide.





- If the windshield wiper switch is operated or a speed of 6 km/h is exceeded, the wipers leave the service position.
