Door Opener Lamp Bulb

Rear Door Lamps and Switches

Door Opener Lamp Bulb

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing





- Remove the door trim panel.

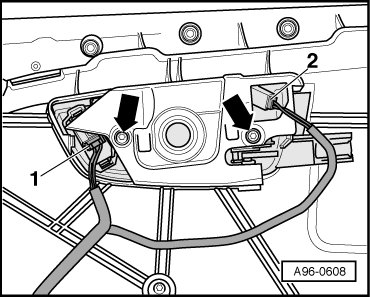

- Disconnect electrical connectors - 1 - and - 2 -.

- Remove bolts - arrows - and remove door opener.

- Turn socket - 1 - to the left and pull out at door opening handle - 2 -.





Installing

Install in reverse order of removal, observing the following:

- Insert lamp bulb for door opener lamp into opening and engage.

- Install door trim.
