Evaporator Vent Temperature Sensor (G263)

Evaporator Vent Temperature Sensor (G263)

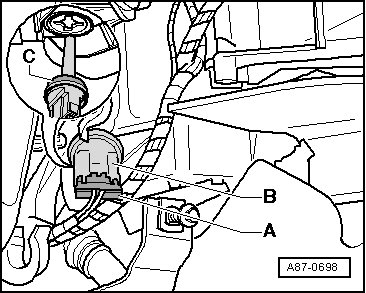

- Remove the glove compartment and the center console.

- Disconnect the connector - A -.






- Turn sensor - B - 90° and pull it out of A/C unit.

- Check seal - C - for proper seating when installing.
