MMI Navigation Connectors, Through 10.31.2008

MMI Navigation Connectors, through 10.31.2008

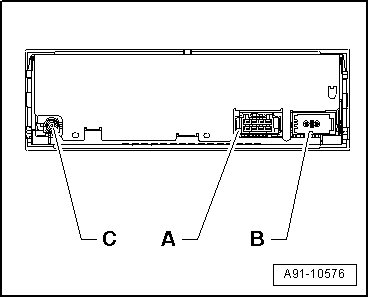

Navigation system with CD drive control module (J401)





A 8-pin multi-pin connector (T8n)
B MOST bus
C Radio, Telephone, Navigation System Antenna (R52) GPS connection (roof antenna)

• Unlisted connector terminals are not used.

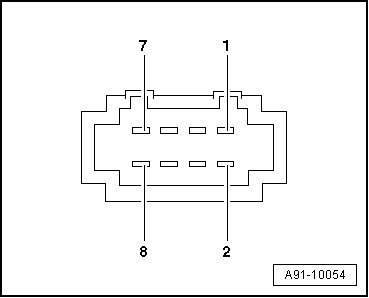

A - 8-Pin Multi-Pin Connector (T8n)





1 Terminal 31
2 Terminal 30
5 Ring-break diagnostic cable

B - MOST Bus





1. IN

2. OUT
