Transmission Identification

Transmission Identification

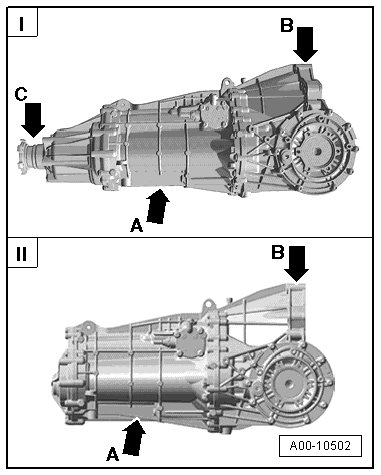

Location on Transmission

- I - AWD (Manual Transmission 0B2)





• - Arrow A - manual transmission 0B1 or 0B2

• - Arrow B - engine code and build date

• - Arrow C - rear flange shaft for the AWD

- II - FWD (manual transmission 0B1)

• - Arrow A - manual transmission 0B1/2

• - Arrow B - engine code and build date

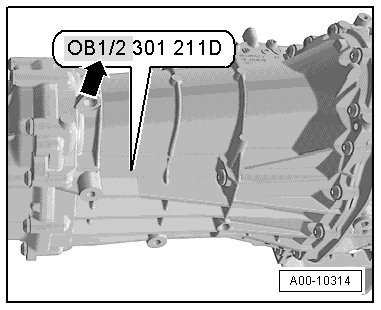

Manual transmission 0B1 or 0B2 - arrow -





• 0B1 - Front wheel drive transmission

• 0B2 - All wheel drive transmission

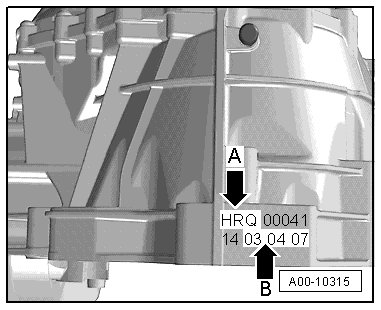

Transmission code - arrow A - and transmission build date - arrow B -










• Additional data depends on manufacture.

• The transmission code letters are also included on the vehicle data labels.
