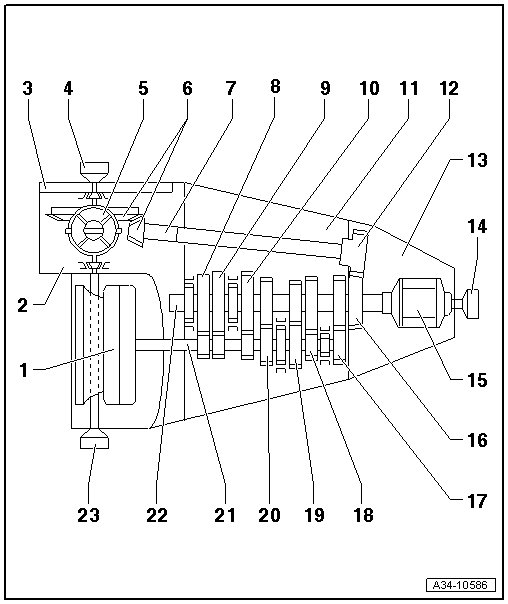

Transmission Overview

Transmission Overview






1 Clutch Module

• Consists of the pressure plate, clutch disc and dual mass flywheel with transfer plate

2 Transmission Housing

3 Cover for Final Drive

4 Right Drive Flange

5 Differential

• With ring gear

6 Gear Set

• Pinion with ring gear / differential

7 Pinion

8 Reverse Gear

9 1st Gear

10 2nd Gear

11 Transmission Cover

12 Side Shaft

• With helical gear wheel

13 Center Differential Housing

14 Rear Flange Shaft

15 Center Differential

16 Spur Gear

• Side shaft drive wheel

17 4th Gear

18 3rd Gear

19 6th Gear

20 5th Gear

21 Input Shaft

22 Output Shaft

23 Flange Shaft, Left
