Maintenance Required Lamp/Indicator: Service and Repair

Service interval display, resetting with VAS 5051 / 5052

- Follow these steps in sequential order

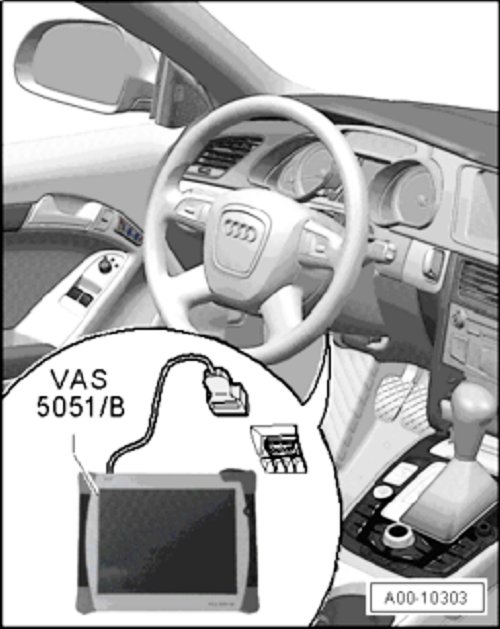

- Connect VAS 5051/ 5052
- Use auxiliary K-lead adapter VAS 6017B
- Guided Fault Finding or Guided Functions
- Go to - function / component selection
- Service work
- Combination processor, reset WIV
- Now follow guided program.

Note: Please follow guided program description.
WIV = Wartungsintervall - Verlangerung (Maintenance Interval Extension)
