Diagram 114/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

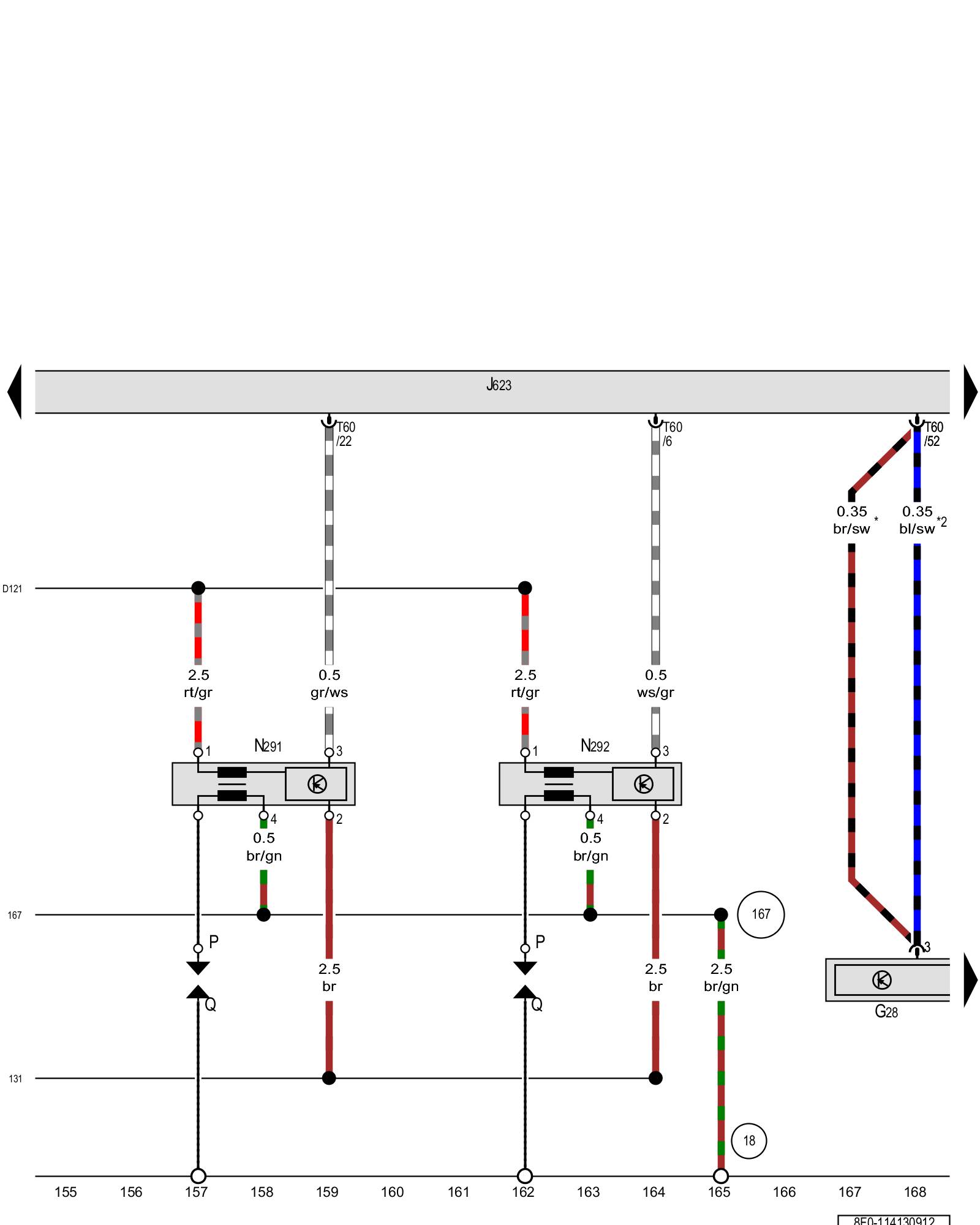

Engine speed sensor, Ignition coil 3 with power output stage, Ignition coil 4 with power output stage





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine speed sensor Engine Management Systems Locations

J623 - Engine control module Control Modules in Front Part Of Vehicle

N291 - Ignition coil 3 with power output stage Engine Management Systems Locations

N292 - Ignition coil 4 with power output stage Engine Management Systems Locations

P - Spark plug connectors

Q - Spark plugs

T60 - 60-pin connector Locations

(18) - Ground connection on engine block

(131) - Ground connection 2 (in engine compartment wiring harness)

(167) - Ground connection 4 (in engine compartment wiring harness)

(D121) - Connection 19 (in engine compartment wiring harness)

* - through April 2012

*2 - from May 2012
