Center Muffler and Rear Muffler, Separating

Center Muffler and Rear Muffler, Separating

• A separating point has been provided in the connecting pipe for individual replacement of the center or rear muffler

• The separating point is marked by a depression around the circumference of the exhaust pipe.

Special tools, testers and auxiliary items required

• Chain Pipe Cutter (VAS 6254)

Procedure

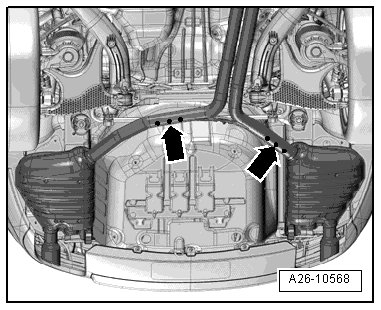

- Separate the exhaust pipes at a right angle at the separating points - arrows - using the (VAS 6254).

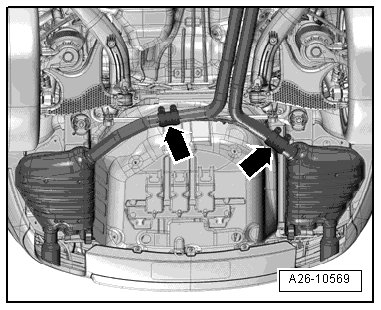

- When installing, position the clamping sleeves - arrows - on the center of the separating point.

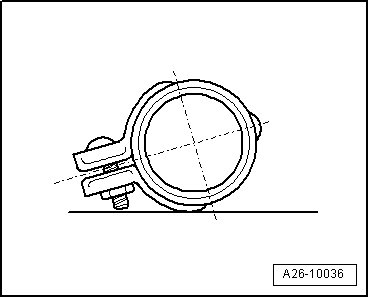

- Install double clamps so that the bolt ends do not project over lower edge of double clamp.






• Installed position: Threaded connections point forward.

- Install exhaust system free of stress, refer to => [ Exhaust System, Aligning ] Exhaust System, Aligning.
