Transmission Identification

Transmission Identification

The continuously variable automatic transmission "Multitronic 0AW FWD" is installed with different engines. For the correct allocation, refer to => [ Code Letters, Transmission Allocations, Ratios and Equipment ] Code Letters, Transmission Allocations, Ratios and Equipment.

Code Letters, Location on Transmission

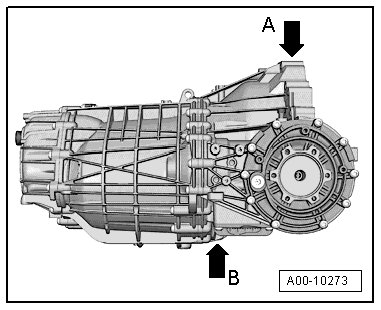

The transmission code and serial number are on the top - arrow A - and the bottom - arrow B - of the transmission housing.

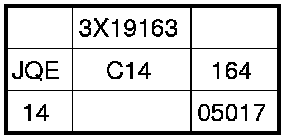

Example:






In this example:

• 3X19163 : Transmission identification number

• JQE : Transmission code

• C14: Production line (irrelevant)

• 164 : Serial number

• 14 : Factory (not relevant)

• 05017 : Build date January 5, 2007

• The transmission code is also listed on the vehicle data plate.
