Pressure Stand, Adapting to 0AW Transmission

Pressure Stand, Adapting to 0AW Transmission

Procedure

• Input shaft removed, refer to => [ Input Shaft ] Input Shaft.

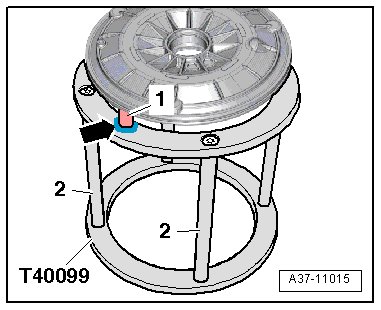

- Place the input shaft centered exactly on the pressure stand (T40099).

- Mark the locations - arrow - where the alignment pins - 1 - are on the upper ring on the (T40099) with color.






• The marked location should be somewhat in the center between the connection - 2 - on the (T40099).

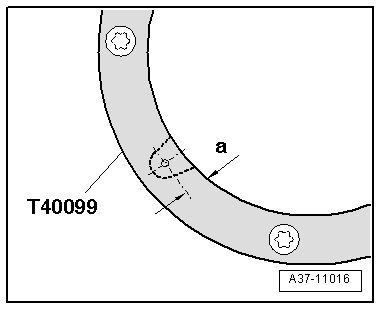

- Make a punch mark inside the marked field - a - = 6 mm from the inner edge and then make a 11 mm hole.






- Make two cuts with a saw - arrow - as illustrated.






- Remove any burrs on the saw cuts and the hole.
