Cooling System - Cooling Fan Noise When Turning
00 Noise when making a turn under hot conditions19 12 32
2021297/5
September 5, 2012.

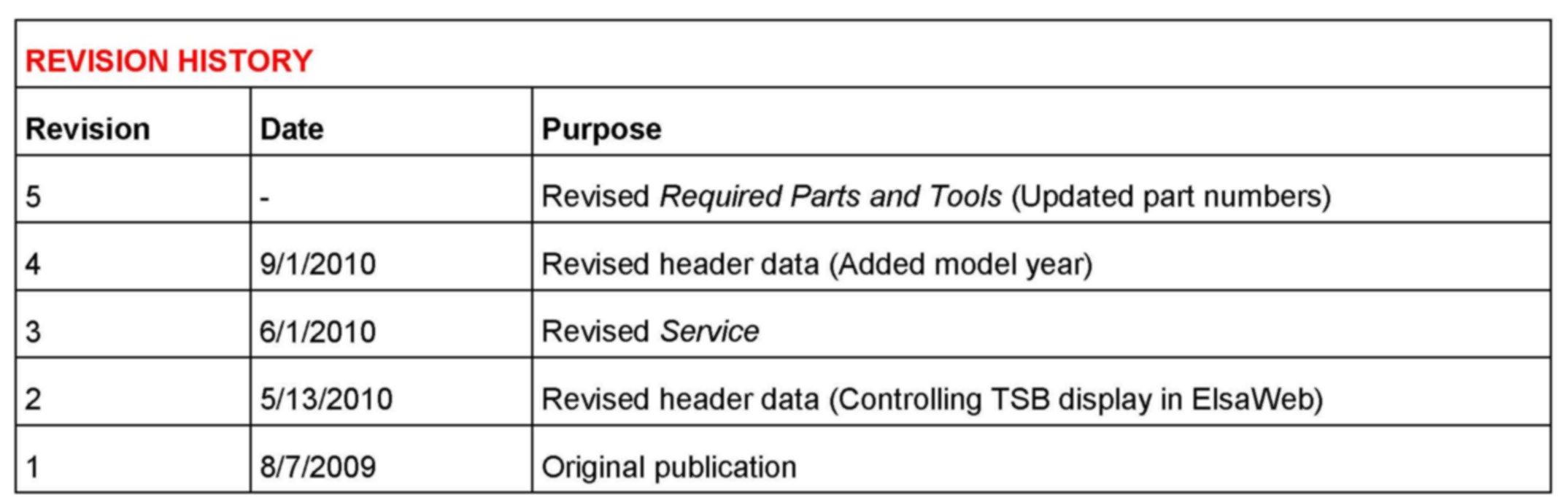

Supersedes Technical Service Bulletin Group 00 number 10 - 10 dated September 1, 2010 for reasons listed below.

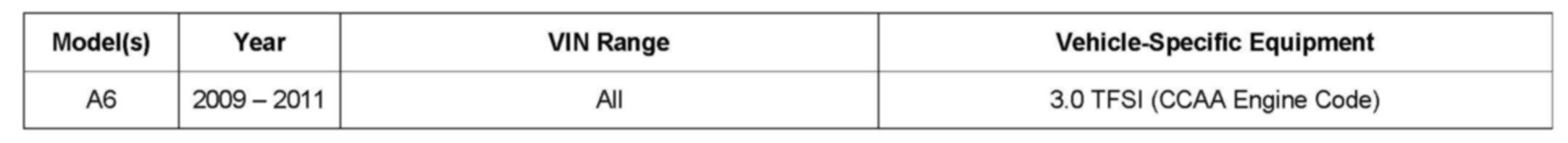

Affected Vehicles
Condition
When the ambient temperature is very high, the air conditioning is on, and the car is at operating temperature, then there might be a noise while the car is making a turn. This noise only occurs if the large radiator cooling fan is running on High.
This noise can be described as a power steering noise, brake noise or belt noise.
Technical Background
The noise is caused by the large cooling fan. The fan creates air turbulence when driving through a turn. The turbulence is in a frequency range that travels easily through the structure of the car. Because of that, the frequencies are audible in the passenger cabin.
All systems remain in full function; the symptom has no negative technical influence.
Production Solution
Not applicable.
Service
1. Replace cooling fan with part number 4F0959455P.
Warranty

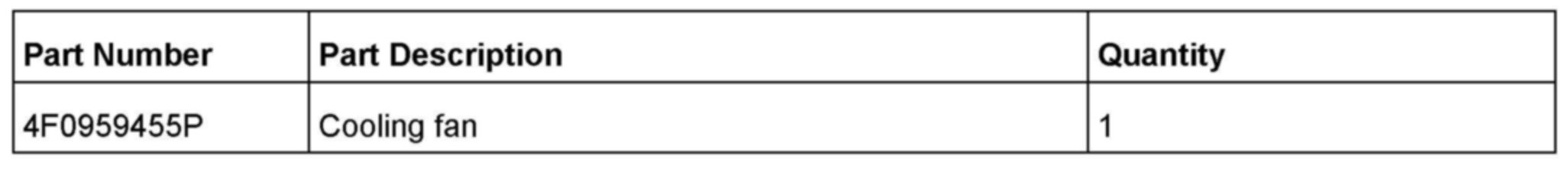

Required Parts and Tools
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
