A/T - Harsh Downshift When Braking Or 1-2 Upshift On Accel
37 Harsh downshifts when braking or harsh 1-2 upshift under acceleration37 12 76
2029305/5
December 19, 2012.

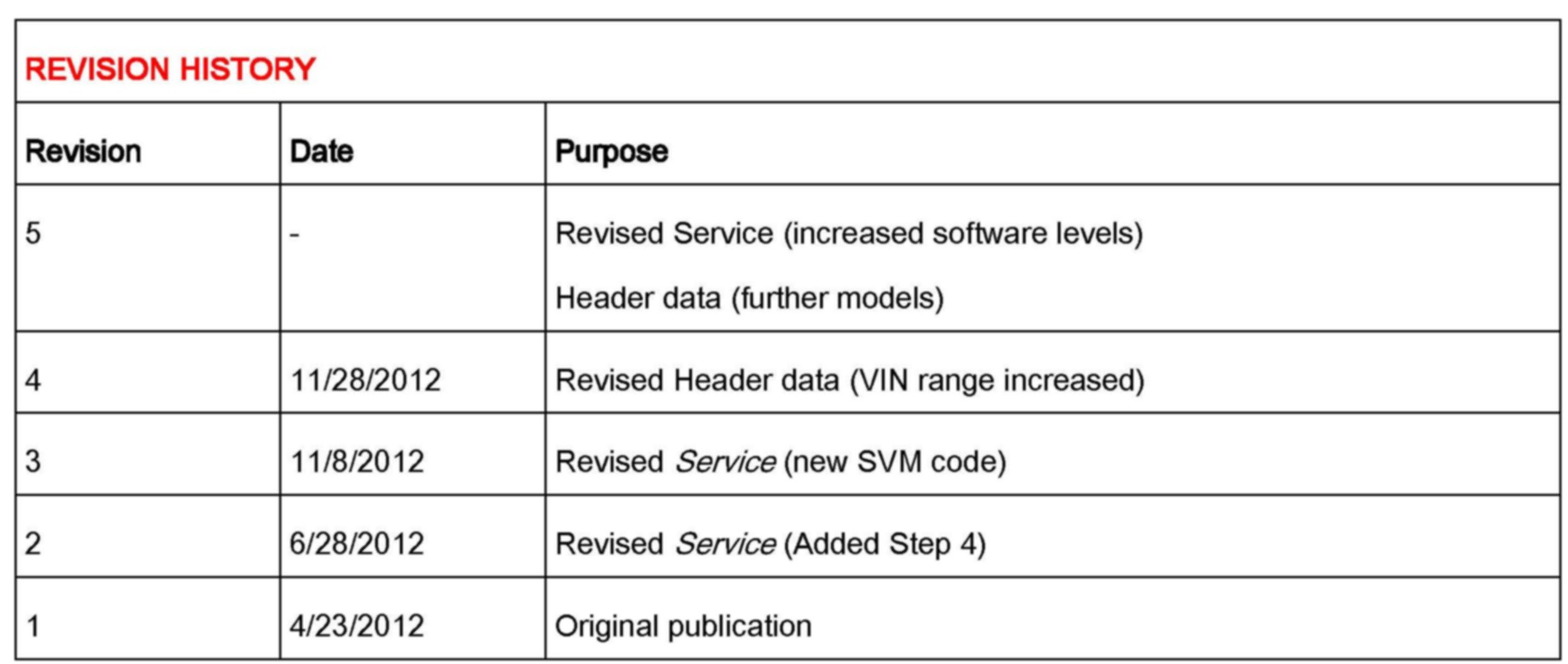

Supersedes Technical Service Bulletin Group 37 number 12-74 dated November 28, 2012 for reasons listed below.
Affected Vehicles
Condition
Customer may report harsh downshifts while braking or harsh 1-2 upshift under acceleration.
Technical Background
Further TCM software calibration to improve shift concerns.
Production Solution
New software in the Transmission Control Module (J217) addresses the condition.
Service
SVM Update Instructions
1. Follow all instructions in the attached TSB 2011732 00 Software Version Management (SVM), operating instructions.

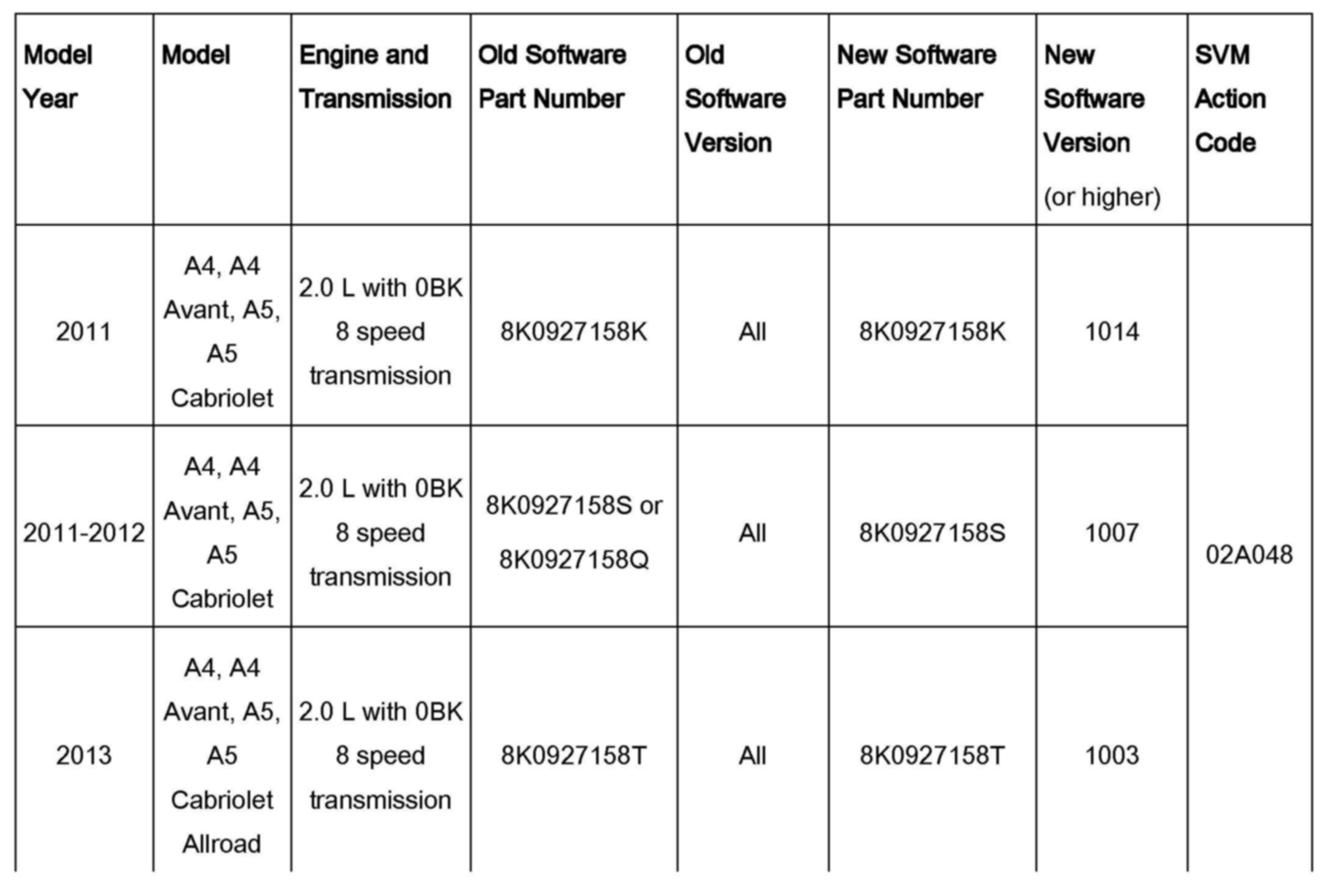

2. Update the Transmission Control Module (J217) using the SVM action code as listed in the table above if necessary.
3. Clear adaptations and perform test drive adaptation through GFF for 2011 model year.
4. Clear adaptations and perform standstill adaptation for 2012-13 model years.

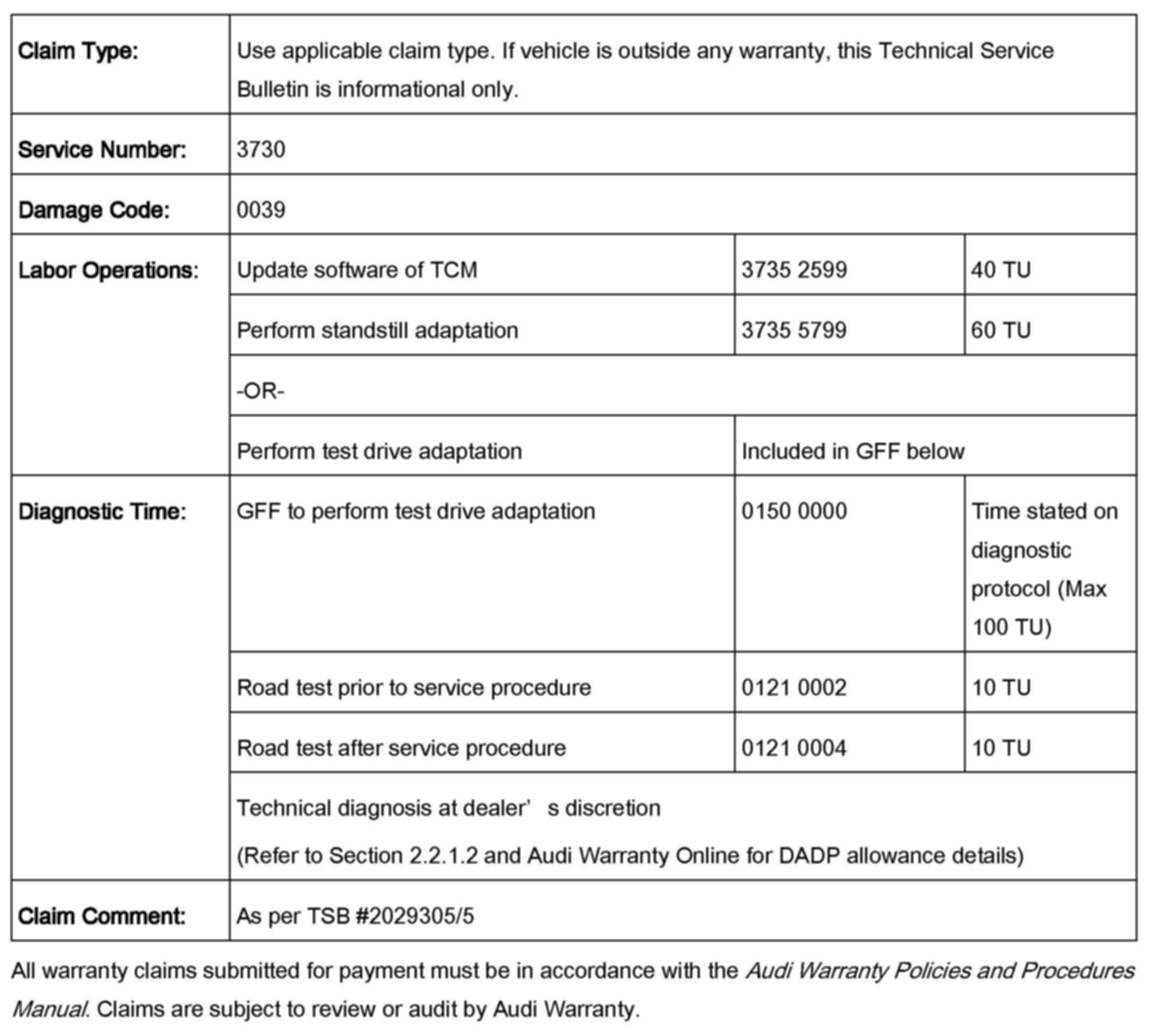

Warranty

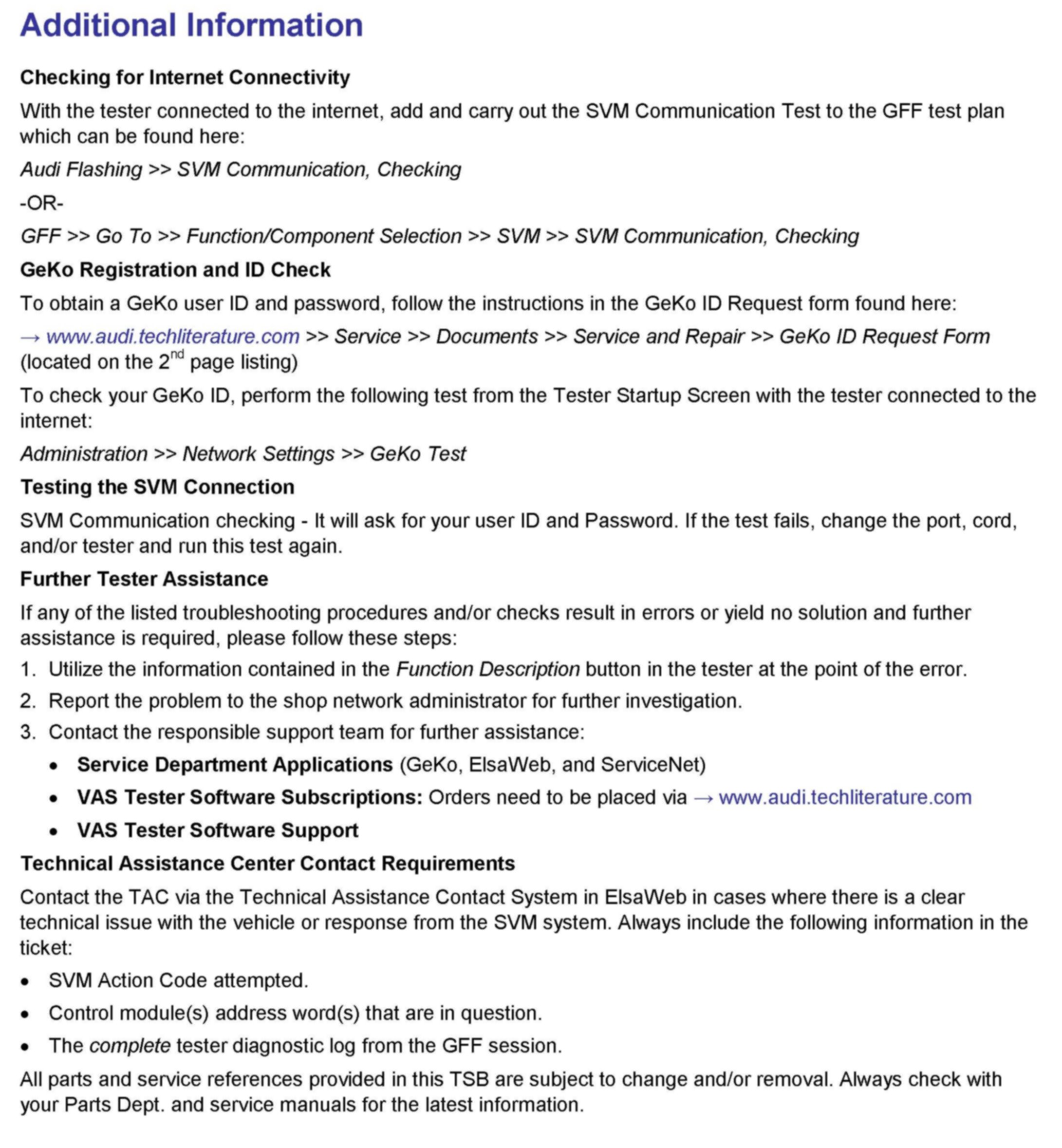

Additional Information
The following Technical Service Bulletin will be necessary to complete this procedure:
^ TSB 2011732 00 Software Version Management (SVM), operating instructions.
All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.

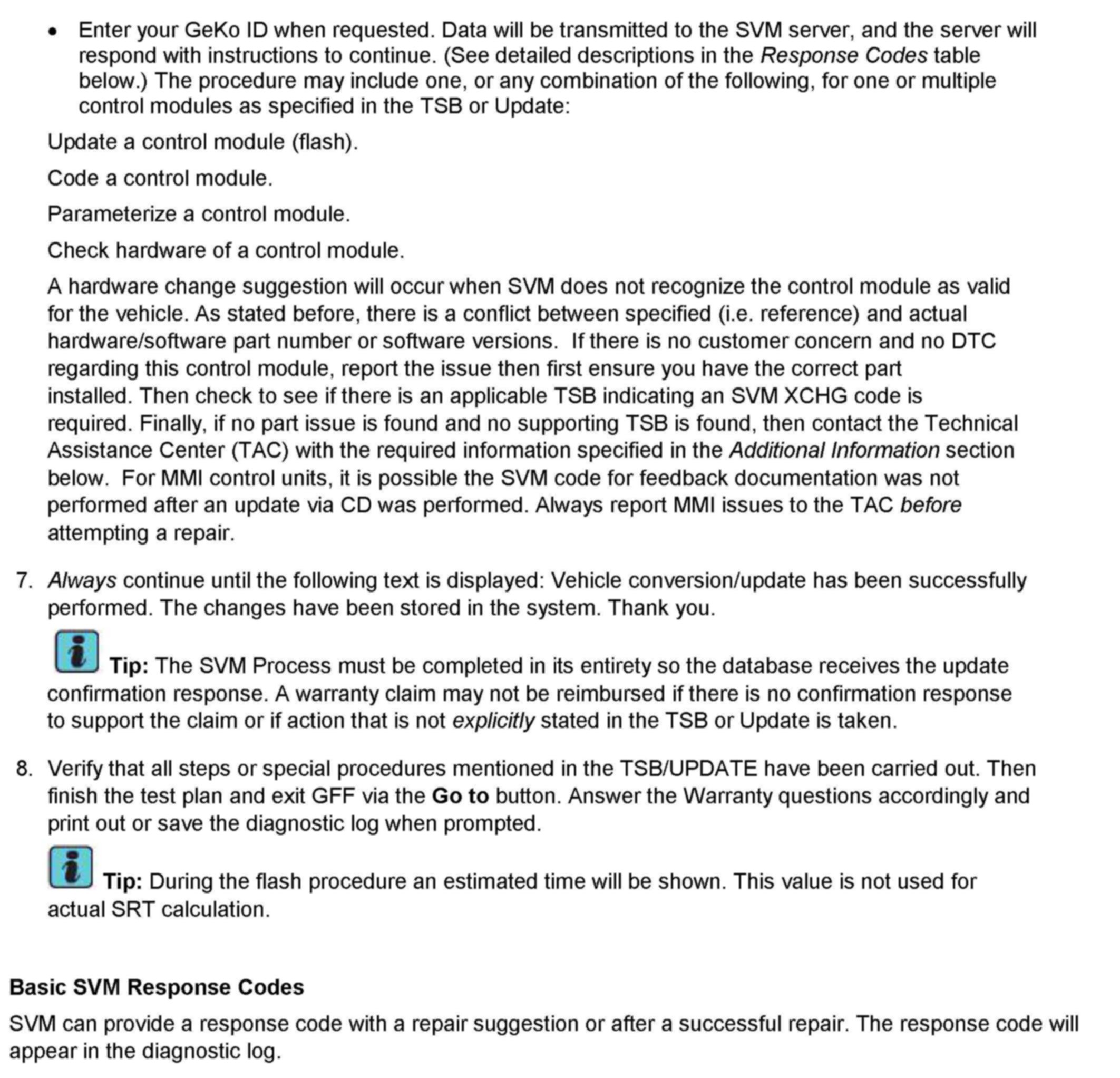

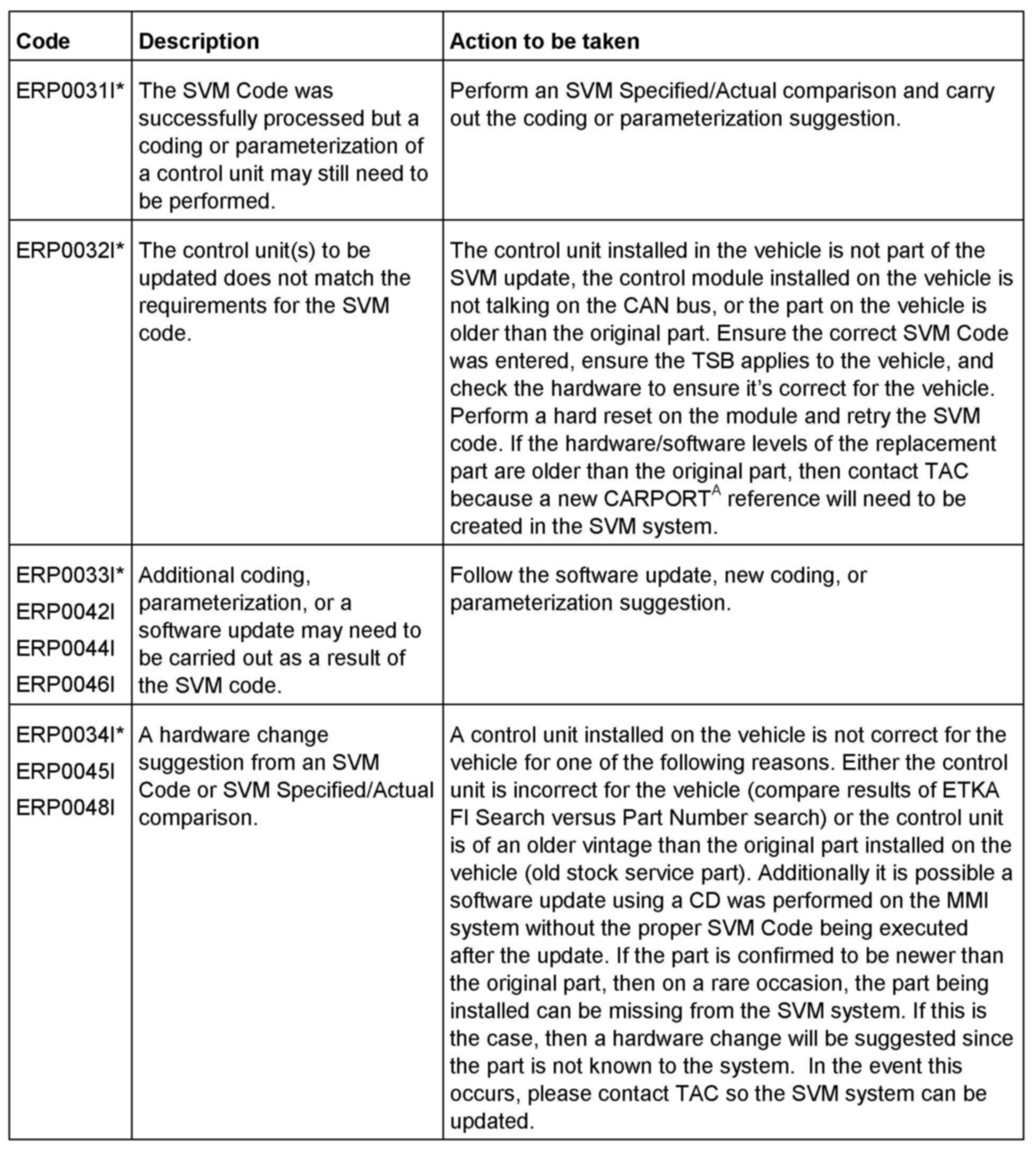

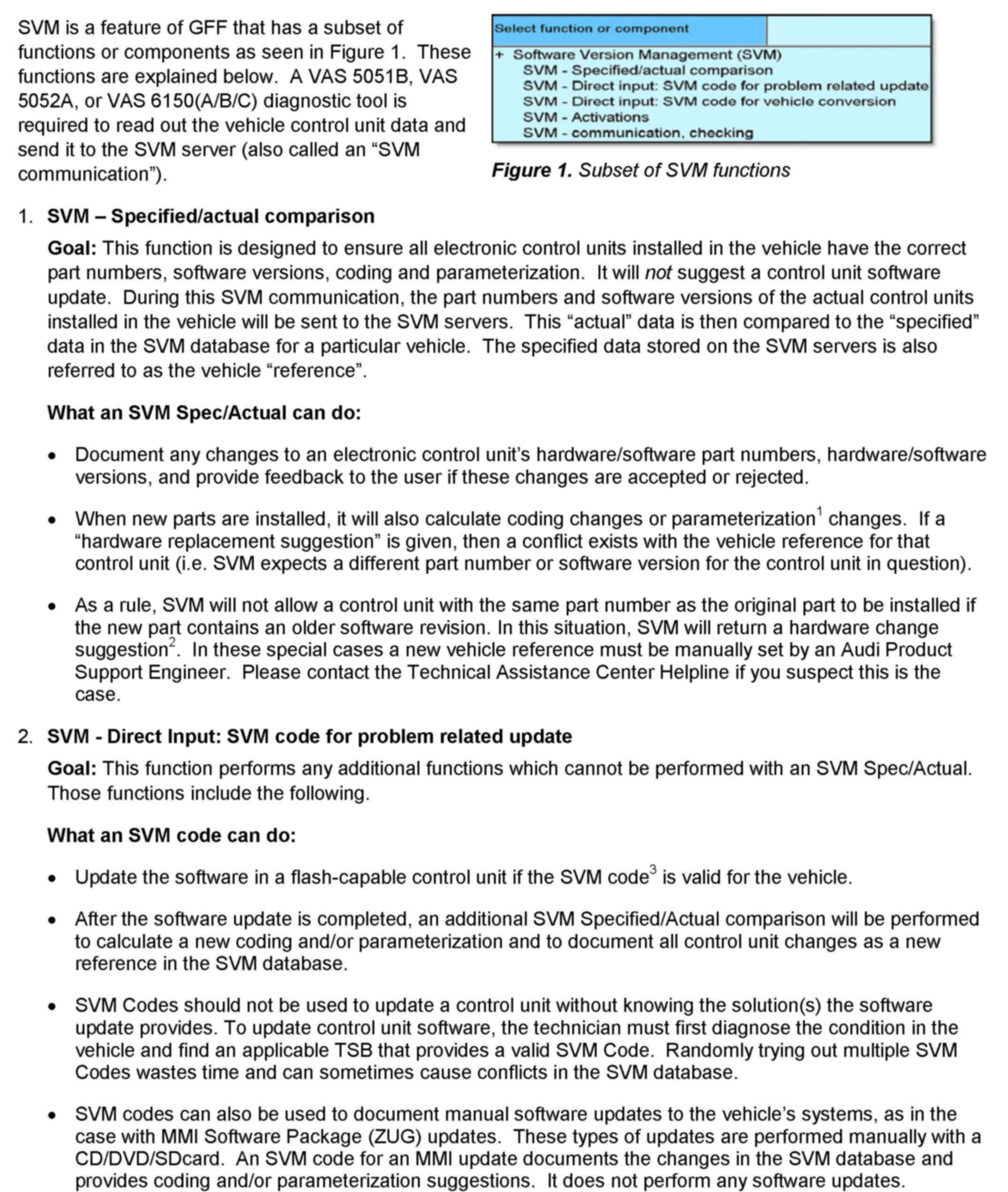

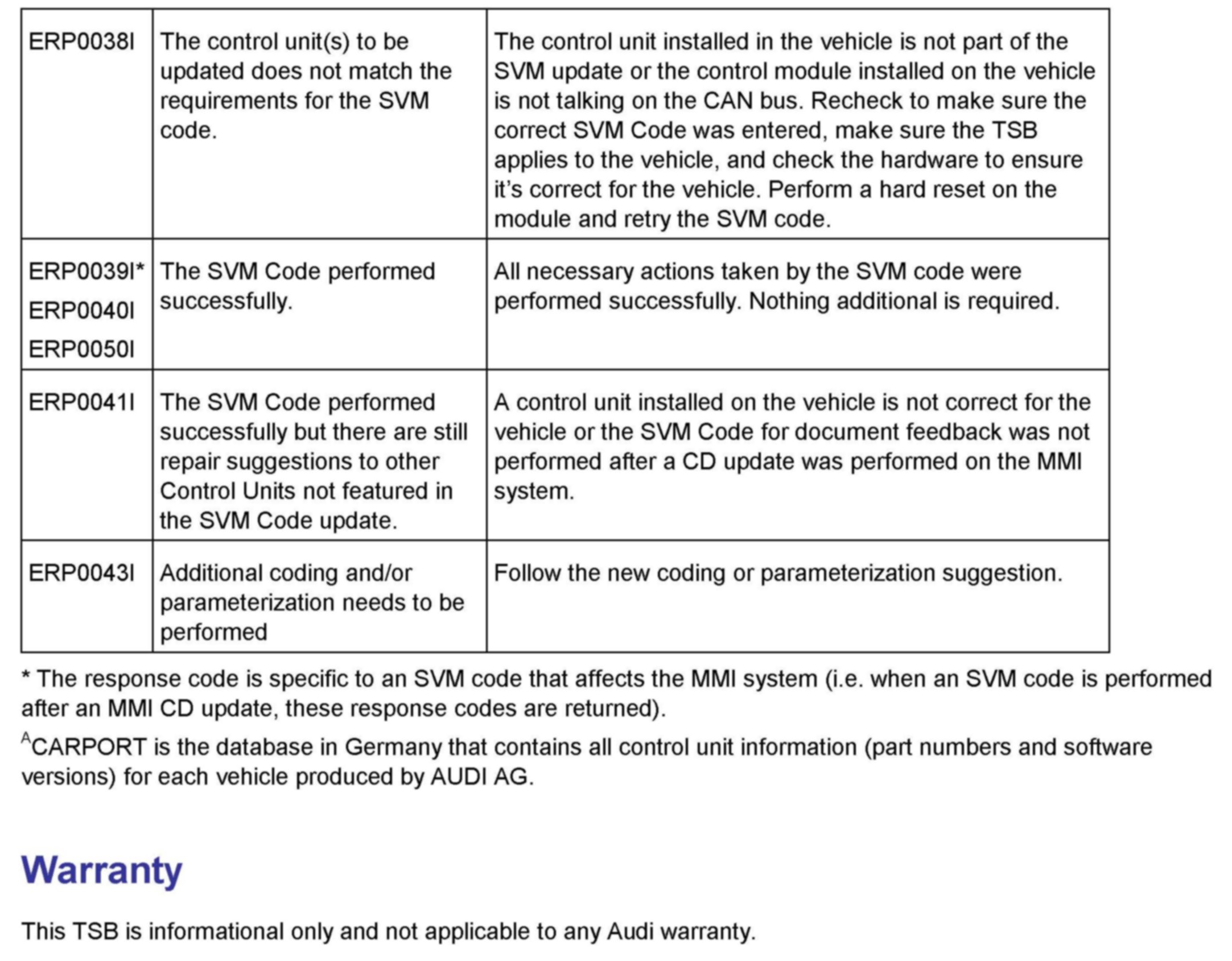

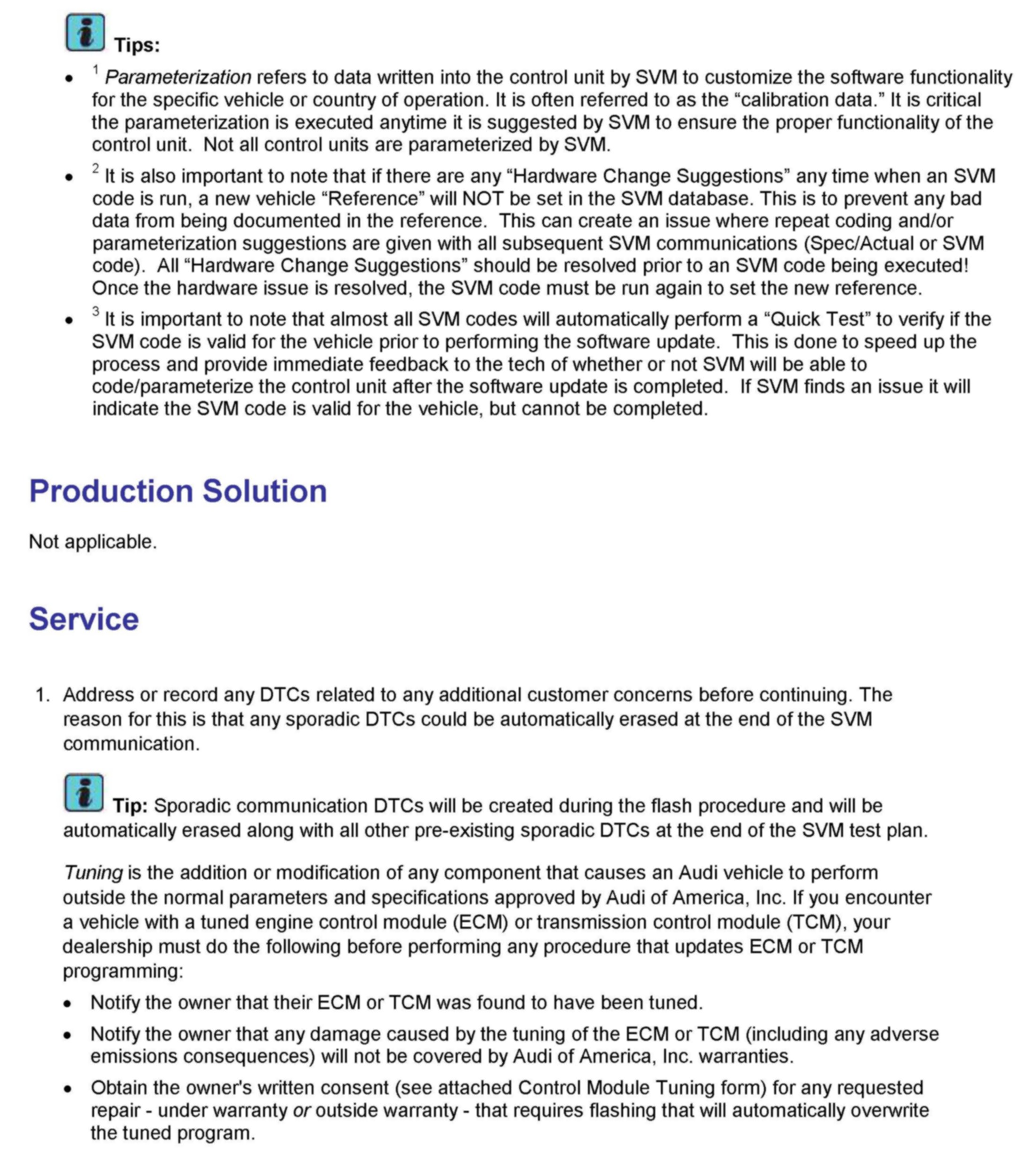

Attachment

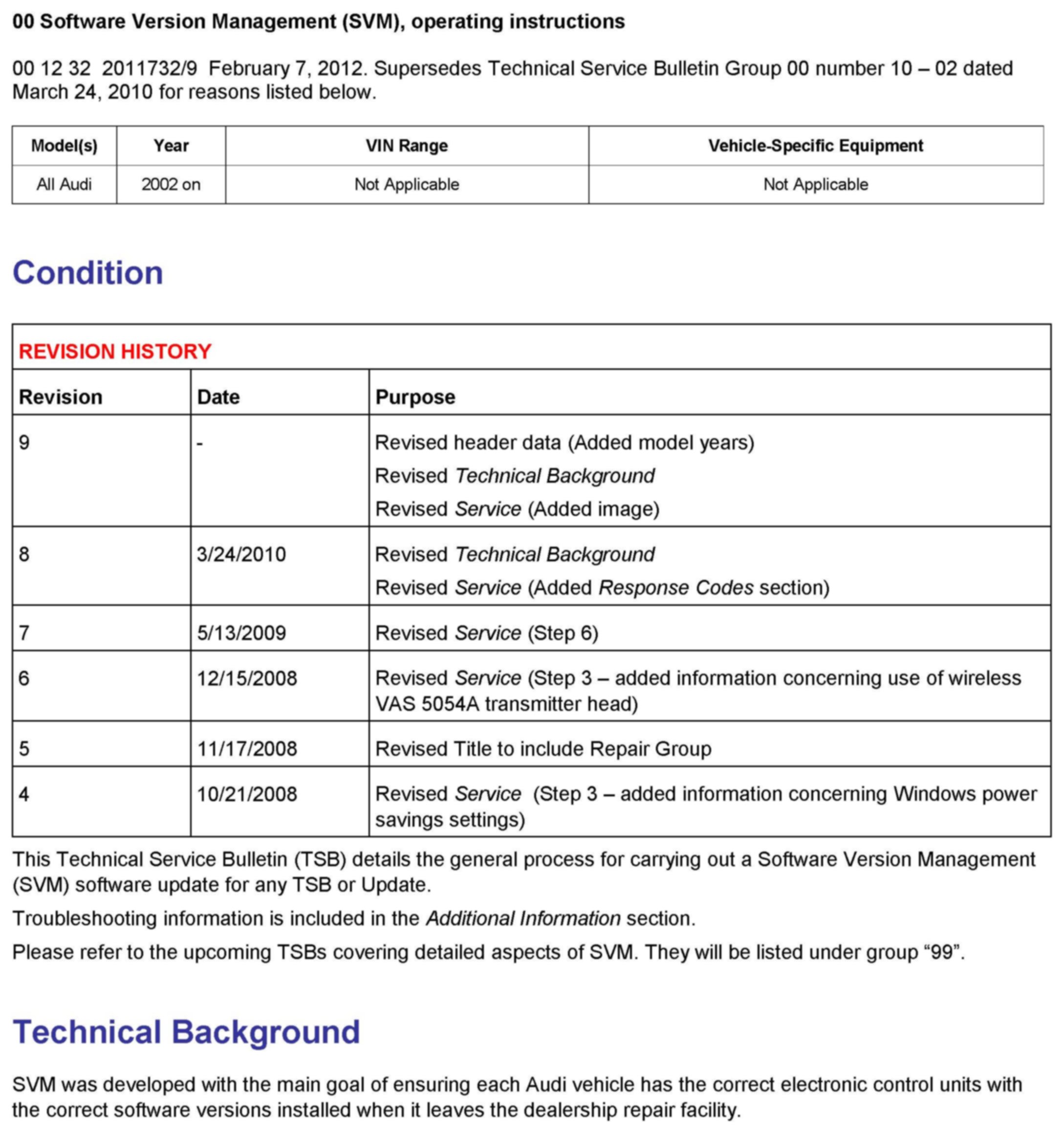

TSB 2011732 00 Software Version Management (SVM), operating instruction
