Windshield Washer Spray Nozzle: Adjustments

Windshield Washer Spray Nozzles, Adjusting

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Special tools, testers and auxiliary items required

• Windshield washer aiming tool (T40187) equipped with Replacement Tips For T10127 (3125/5A)

Adjusting





Risk of injury.

• If the windshield washer aiming tool (T40187) is not used, ensure that both sides are always covered and secured by covers - 3 - and - 4 -.

• If one side is not secured by the cover, injury can be caused by the Replacement Tips For T10127 (3125/5A) - 1 - or adjusting pin - 2 -.

• When opening each side, always ensure that the other side is not pointing toward the hand.

• The settings indicate the values for a moving vehicle, i.e. the spray from the jets is slightly offset when the vehicle is stationary.

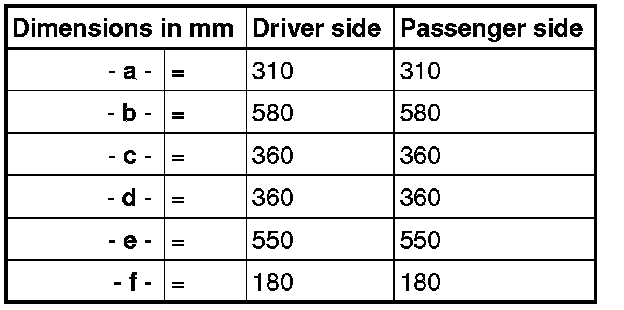

- Mark the six points on windshield using a water soluble marker:












- Unlock long cover - 1 - on the (T40187) - arrow A - and push it back - arrow B -.





- Place adjusting pin - 2 - on the respective nozzle - arrow - of nozzle unit - 1 - and aim at the points on the windshield and adjust if necessary.





- If the spray field does not correspond to the specifications, clean dirty spray jet.

Risk of injury.

• The adjusting pin must be covered and secured by the cover after each use.

Cleaning the nozzle

- Remove nozzle. Refer to => [ Windshield Washer Spray Nozzles ] Windshield Washer Spray Nozzles.

- Flush nozzle opposite to spray direction using clear water.

- To remove remaining impurities, the nozzle must only be blown out opposite to spray direction using compressed air.

- If the spray field still does not correspond to the specifications, replace the spray jet.
