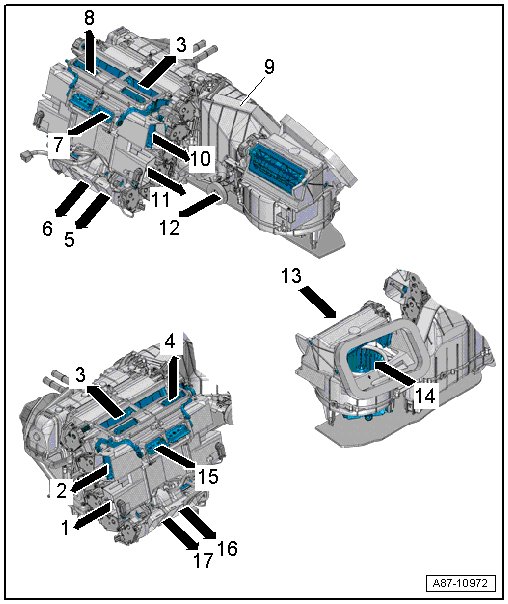

A/C Unit Air Inlet and Air Vents Overview

A/C Unit Air Inlet and Air Vents Overview






1 To The Driver Footwell Vent

2 To The Instrument Panel Vent On The Driver Side

3 To The Instrument Panel Air Guide

• With air guide to the windshield, defroster vents for the left and right side windows.

4 To The Instrument Panel Air Guide

• With the air guide to the right center instrument panel - "indirect ventilation".

5 To The Rear Footwell Vent On The Passenger Side

6 To The Air Guide Channel In The Rear Center Console

• Basic A/C system: with the air guide to the rear vent on the passenger side.

• Comfort A/C system: with air guide to the rear vent on the passenger side and to the air guide on the front passenger side for the B-pillar vent.

7 To The Air Guide For The Center Instrument Panel Vents

• With the air guide to the front passenger instrument panel vent.

8 To The Instrument Panel Air Guide

• With the air guide to the left center instrument panel - "indirect ventilation".

9 Air Conditioner Unit

• Different versions, Basic and Comfort. Refer to Electronic Parts Catalog (ETKA).

10 To The Instrument Panel Vent On The Front Passenger Side

11 To The Footwell Vent On The Front Passenger Side

12 To The Glove Compartment

• Only in the Comfort A/C system.

• To the glove compartment cooling system.

• In the Basic version, the glove compartment cooling system connector is connected to the A/C system.

13 Air Inlet From The Interior

• Recirculation mode.

14 Air Inlet From The Plenum Chamber

• Fresh air mode.

15 To The Air Guide For The Center Instrument Panel Vents

• With the air guide to the driver instrument panel vent.

16 To The Air Guide Channel In The Rear Center Console

• Basic A/C system: with the air guide to the rear vent on the driver side.

• Comfort A/C system: with air guide to the rear vent on the driver side and to the air guide on the driver side for the B-pillar vent.

17 To The Rear Footwell Vent On The Driver Side
