A/C System Control Components In-Cabin, Left

Component Locations: Climatronic / Climatic Systems

A/C System Control Components In-Cabin, left







2 - Position sensor in left side vent -G628-
• Behind dash panel vent

3 - Vehicle electrical system control module -J519-

4 - Left vent temperature sensor -G150- => [ Left vent temperature sensor ] See Image Below.
• Behind the driver side dash panel cover

6 - Outside air temperature display -G106-
• Part of the control unit in the dash panel insert

7 - Dash panel insert

8 - Position sensor in left center vent -G626-
• Behind dash panel vent

9 - Front information display control head -J685-

10 - Infrared temperature and sunlight penetration sensor
• Part of the control unit (deluxe unit shown)

12 - Multimedia system control head -E380-

13 - Fresh air blower -V2- with Fresh air blower control module -J126- => [ Air intake box ] A/C System Control Components In-Cabin, Right

15 - Left footwell vent temperature sensor -G261- => [ Left footwell vent temperature sensor ] See Image Below.
• Behind the driver side footwell panel cover

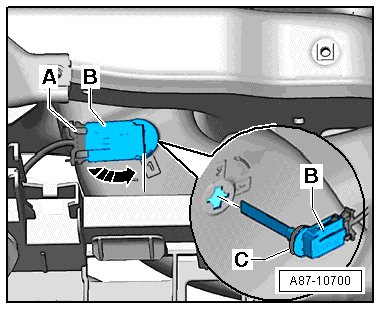

Left vent temperature sensor






B - Left vent temperature sensor -G150-

Left footwell vent temperature
sensor






2 - Left footwell vent temperature sensor -G261-
